INSIDE HANDLE LIGHT INSPECTION

PROCEDURE


  1. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

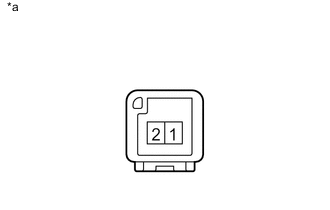

    A000WX1E52
    Text in Illustration
    *a

    Component without harness connected

    (Front Door Inside Handle Illumination Light Assembly LH)

    1. Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → Terminal 2

      Battery negative (-) → Terminal 1

      		 Illuminates

      If the result is not as specified, replace the front door inside handle illumination light assembly LH.

  2. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH

    A000WX1E52
    Text in Illustration
    *a

    Component without harness connected

    (Front Door Inside Handle Illumination Light Assembly RH)

    1. Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → Terminal 2

      Battery negative (-) → Terminal 1

      		 Illuminates

      If the result is not as specified, replace the front door inside handle illumination light assembly RH.

  3. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

    A000WX1E52
    Text in Illustration
    *a

    Component without harness connected

    (Rear Door Inside Handle Illumination Light Assembly LH)

    1. Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → Terminal 2 (+B)

      Battery negative (-) → Terminal 1 (GND)

      		 Illuminates

      If the result is not as specified, replace the rear door inside handle illumination light assembly LH.

  4. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH

    A000WX1E52
    Text in Illustration
    *a

    Component without harness connected

    (Rear Door Inside Handle Illumination Light Assembly RH)

    1. Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → Terminal 2 (+B)

      Battery negative (-) → Terminal 1 (GND)

      		 Illuminates

      If the result is not as specified, replace the rear door inside handle illumination light assembly RH.
