INSIDE HANDLE LIGHT REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

    Click here

  2. REMOVE FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH

    Click here

  3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Click here

  4. REMOVE FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

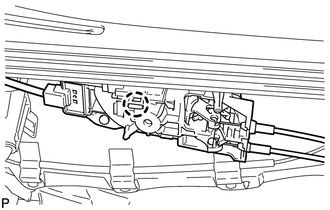

    A000X9L

    1. Detach the claw.

    2. Disconnect the connector to remove the front door inside handle illumination light assembly.

  5. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

    Click here

  6. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

    Click here

  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH


    1. w/o Rear Door Sunshade:

      Click here

    2. w/ Rear Door Sunshade:

      Click here

  8. REMOVE REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

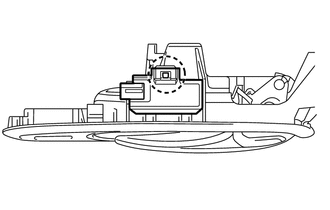

    A000ZEX

    1. Detach the claw.

    2. Disconnect the connector to remove the rear door inside handle illumination light assembly.
