FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY


    1. A000VZZ

      Install the front shoulder belt anchor adjuster assembly with the 2 bolts. First install the upper bolt, and then install the lower bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  2. INSTALL HEIGHT ADJUSTABLE ANCHOR MOTOR LH


    1. A000ZTD

      Insert the height adjustable anchor motor LH into the front shoulder belt anchor adjuster assembly and attach the 2 claws as shown in the illustration .

    2. Connect the connector.

  3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

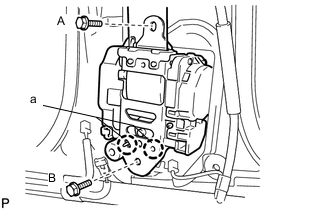

    A000V28E04

    Note

    When installing the retractor, make sure the vehicle's claws (labeled "a" in the illustration) only contact the installation areas of the retractor.


    1. Align the vehicle's claws with the seat belt retractor positioning holes.

    2. Install the front seat outer belt assembly LH with the 2 bolts. First install the upper bolt, and then install the lower bolt.

      Torque:
      for bolt A
      7.5 N*m  { 76 kgf*cm, 66 in.*lbf }
      for bolt B
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

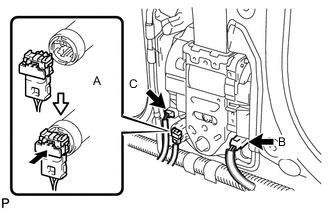

    3. A00102XE04

      Connect the pretensioner connector labeled A, and lock the locking button as shown in the illustration.

    4. w/ Tension Reducer System:

      Connect the tension reducer connector labeled B.

    5. w/ Pre-crash Safety System:

      Connect the pre-crash safety connector labeled C.

    6. A000Y0T

      Install the shoulder anchor of the front seat outer belt assembly LH to the front shoulder belt anchor adjuster assembly with the nut.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  4. INSTALL FRONT SEAT SHOULDER BELT GUIDE

    A000TJN

    1. Install the front seat shoulder belt guide with the 2 screws.

      Note

      Make sure the belt is not pinched as this may damage the belt.

  5. INSTALL CENTER UPPER PILLAR GARNISH LH

    Click here

  6. INSTALL CENTER LOWER PILLAR GARNISH LH

    Click here

  7. INSTALL REAR DOOR SCUFF PLATE LH


    1. for Standard Body:

      Click here

    2. for Long Body:

      Click here

  8. INSTALL FRONT DOOR SCUFF PLATE LH

    Click here

  9. INSTALL FRONT SEAT ASSEMBLY

    Click here

  10. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH


    1. A000VLA

      Connect the anchor part of the front seat outer belt assembly LH with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  11. INSTALL SEAT BELT ANCHOR COVER CAP LH


    1. A000UYH

      Attach the guide and 4 claws to install the seat belt anchor cover cap LH by pushing it in the direction indicated by the arrow in the illustration.

    2. A000TTPE01

      After installing the seat belt anchor cover cap LH, pull out the seat belt toward the front as shown in the illustration.

      Note

      When installing the seat belt anchor cover cap LH, the seat belt will get pushed in and shorten. Therefore, perform the above to return the seat belt to the proper position.

      Specification
      Position Angle
      A 35°

  12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  13. INSTALL BATTERY SERVICE HOLE COVER LH

    Click here

  14. INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire)

    Click here

  15. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire)

    Click here

  16. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  17. CHECK SRS WARNING LIGHT

    Click here
