COMBINATION METER INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL COMBINATION METER ASSEMBLY




   1.

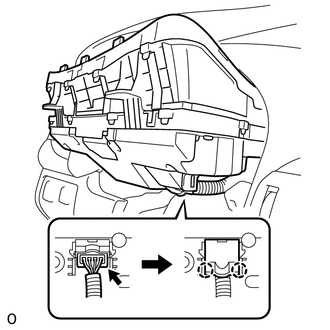

      Connect the connector and attach the 2 claws to close the connector cover.

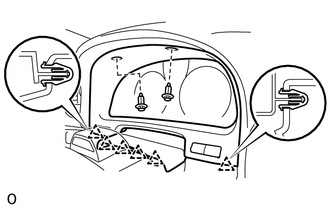

   2. Install the combination meter assembly with the 4 screws.

2. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)

   Click here

3. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)

   Click here

4. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY




   1. Connect the 2 connectors.

   2.

      Attach the 6 clips to install the No. 2 instrument cluster finish panel sub-assembly.

   3. Install the 2 clips.

5. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

   Click here

6. INSTALL INSTRUMENT PANEL ORNAMENT

   Click here

7. INSTALL INSTRUMENT SIDE PANEL LH

   Click here

8. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

9. ENABLE AUTOAWAY/RETURN FUNCTION




   1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter Click here.

10. INSTALL BATTERY SERVICE HOLE COVER LH

    Click here

11. INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire)

    Click here

12. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire)

    Click here

13. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

    Click here
