COMBINATION METER REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Do not touch any parts of the circuit of the meter display panel and condenser. Even if the power switch is off, the meter display panel and condenser are electrically charged.

Note


  • Make sure the combination meter glass does not become dirty with fingerprints, oil, etc. If dirty, clean with a soft cloth.

  • Be careful of static electricity when handling the combination meter. Make sure the work area has static electricity prevention measures.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  2. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire)

    Click here

  3. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire)

    Click here

  4. REMOVE BATTERY SERVICE HOLE COVER LH

    Click here

  5. PRECAUTION

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work Click here.

  6. DISABLE AUTOAWAY/RETURN FUNCTION


    1. Disable the autoaway/return function by changing the customize parameter Click here.

      Note

      Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      Tech Tips

      Performing the above operation causes the autoaway/return function to be disabled when the power switch is turned off.

    2. Turn the power switch on (IG). Operate the tilt and telescopic switch to fully retract and tilt up the steering column assembly.

    3. Turn the power switch off.

  7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL


    1. Disconnect the cable from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary negative (-) battery terminal to disable the SRS system.

      Note

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  8. REMOVE INSTRUMENT SIDE PANEL LH

    Click here

  9. REMOVE INSTRUMENT PANEL ORNAMENT

    Click here

  10. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

  11. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

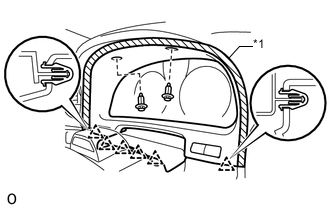

    1. A000VM1E01
      Text in Illustration
      *1 Protective Tape

      Apply protective tape to the area shown in the illustration.

    2. Remove the 2 clips.

    3. Detach the 6 clips and remove the instrument finish panel sub-assembly.

    4. Disconnect the 2 connectors.

  12. REMOVE STEERING COLUMN COVER (w/o Driver Monitor Camera)

    Click here

  13. REMOVE STEERING COLUMN COVER (w/ Driver Monitor Camera)

    Click here

  14. REMOVE COMBINATION METER ASSEMBLY

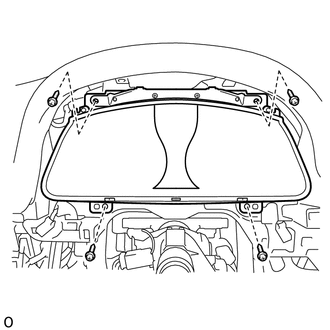

    1. A000WKV

      Remove the 4 screws and combination meter assembly.

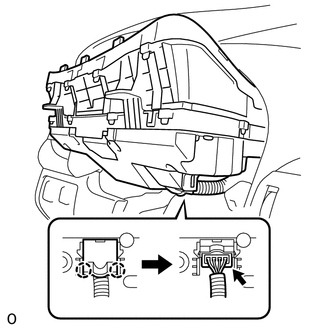

    2. A000TGX

      Detach the 2 claws and open the connector cover.

    3. Disconnect the connector.
