FRONT CONSOLE BOX(for Automatic Transmission) REASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY


    1. Attach the 6 claws to install the parking brake hole cover.

  2. INSTALL UPPER CONSOLE PANEL


    1. Attach the 5 claws and 3 clips to install the upper console panel.

    2. Install the 2 screws.

  3. INSTALL CONSOLE BOX ASSEMBLY

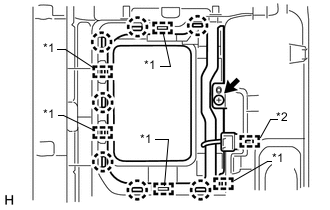

    A01XD8ZE04
    Text in Illustration
    *1 Guide
    *2 Clamp

    1. Attach the 7 claws and 5 guides to install the console box.

    2. Attach the clamp.

    3. Install the screw.

  4. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY


    1. Attach the 4 claws to install the shifting hole cover.

  5. INSTALL INSTRUMENT PANEL CUP HOLDER ASSEMBLY


    1. Install the instrument panel cup holder with the 4 screws.

  6. INSTALL CONSOLE BOX REGISTER ASSEMBLY


    1. Attach the 4 claws to install the console box register.

  7. INSTALL CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY


    1. Install the console compartment door hinge with the 4 screws.

    2. Install the cover with the 8 screws.

    3. Install the cover.

    4. Install the 4 screws.

  8. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY


    1. Install the console compartment door with the 6 screws.
