AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System) PARTS LOCATION

ILLUSTRATION

B001DB6E02

ILLUSTRATION

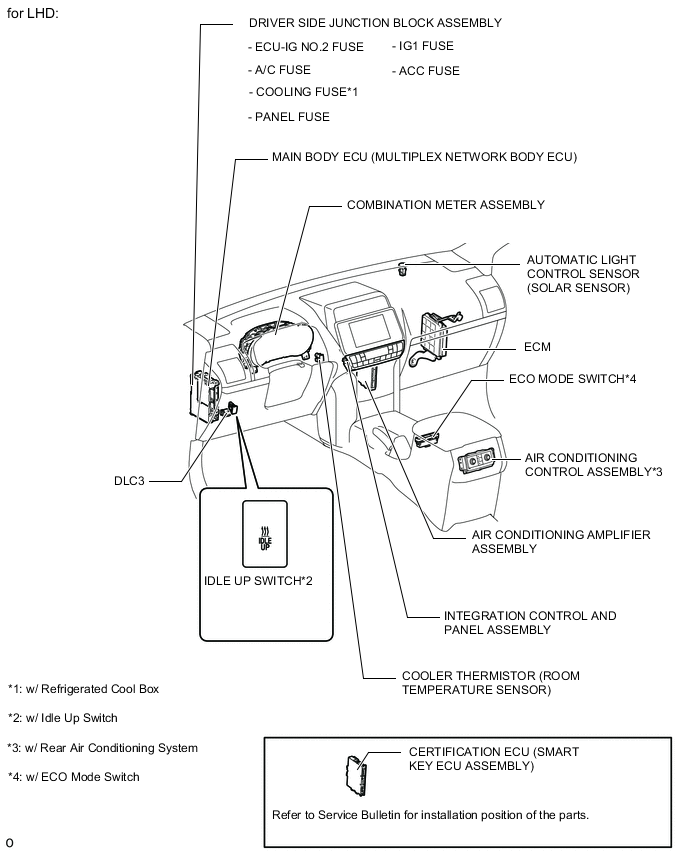

B001CGYE01

ILLUSTRATION

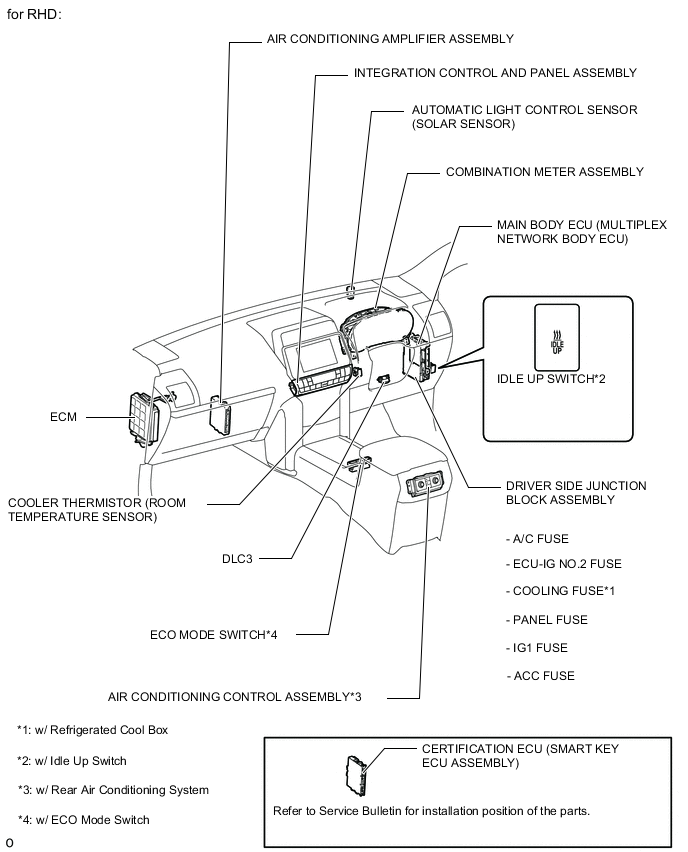

B001DFPE01

ILLUSTRATION

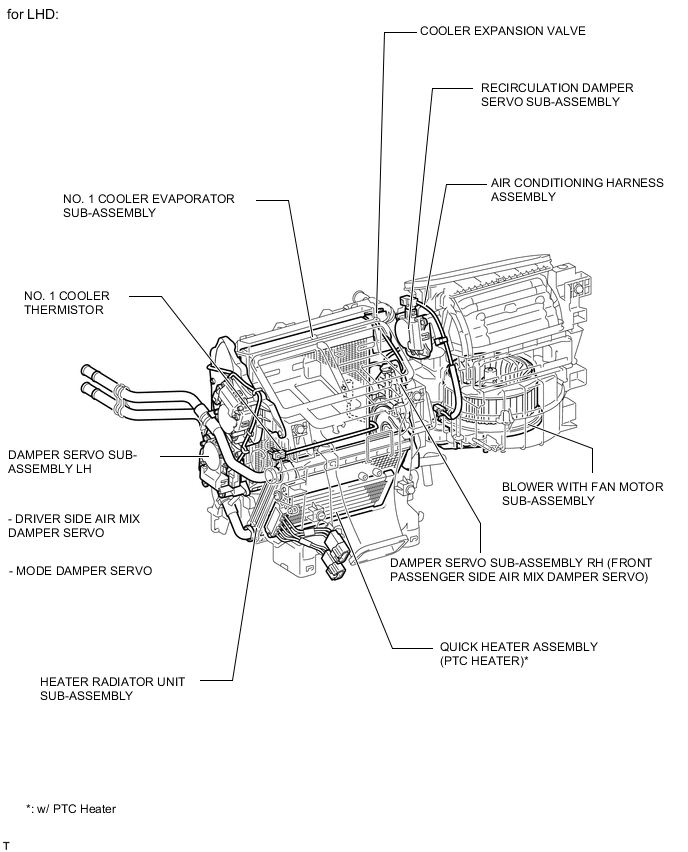

B001G61E08

ILLUSTRATION

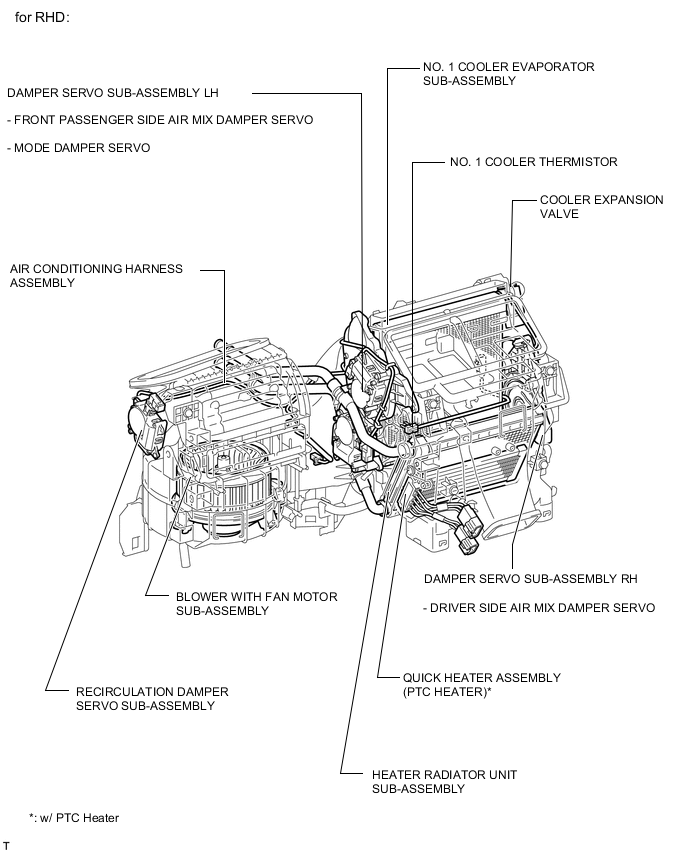

B001GNYE03

ILLUSTRATION

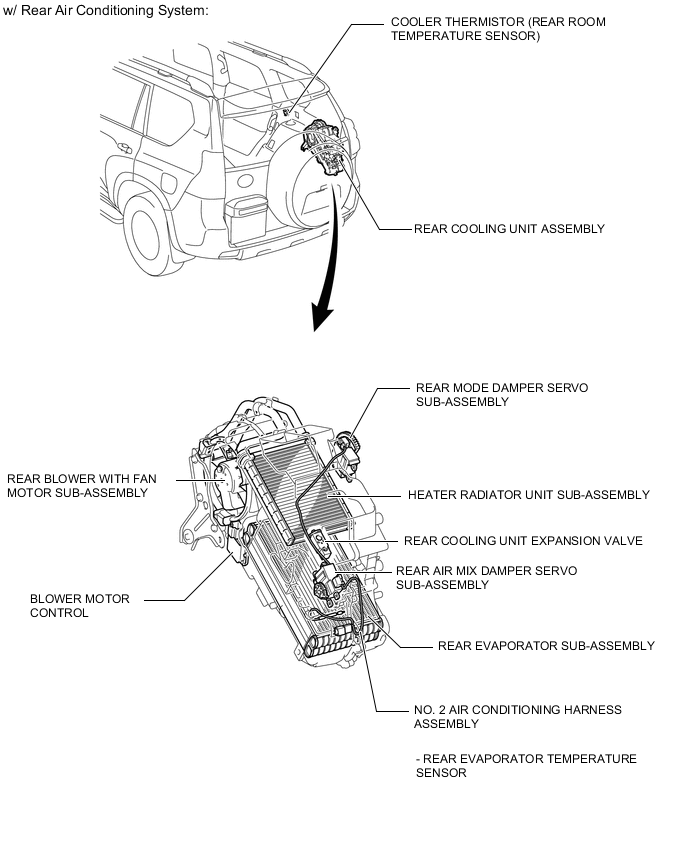

B001DHSE01

ILLUSTRATION

B001F74E01
