AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System) PARTS LOCATION

ILLUSTRATION

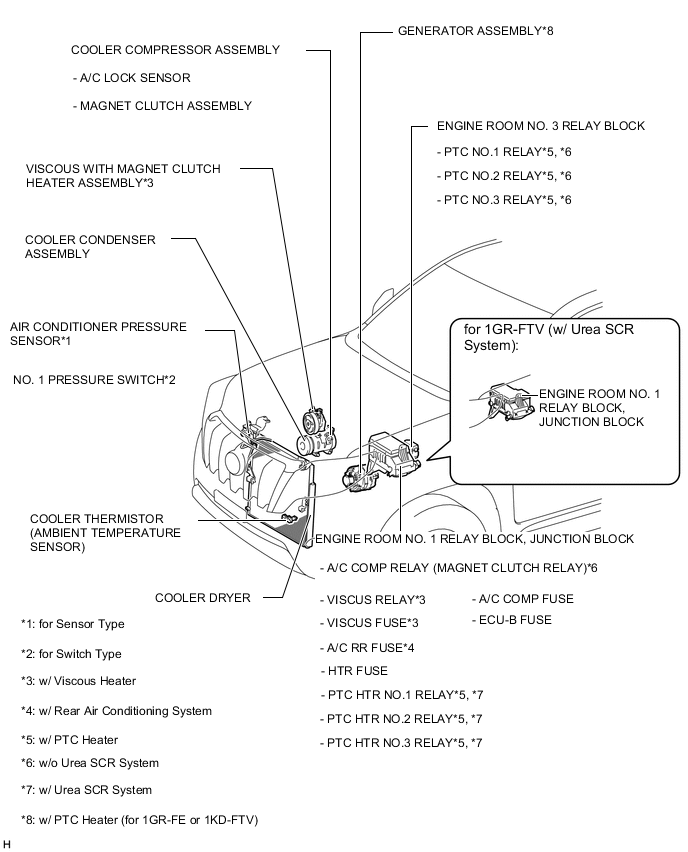

B001IFGE02

ILLUSTRATION

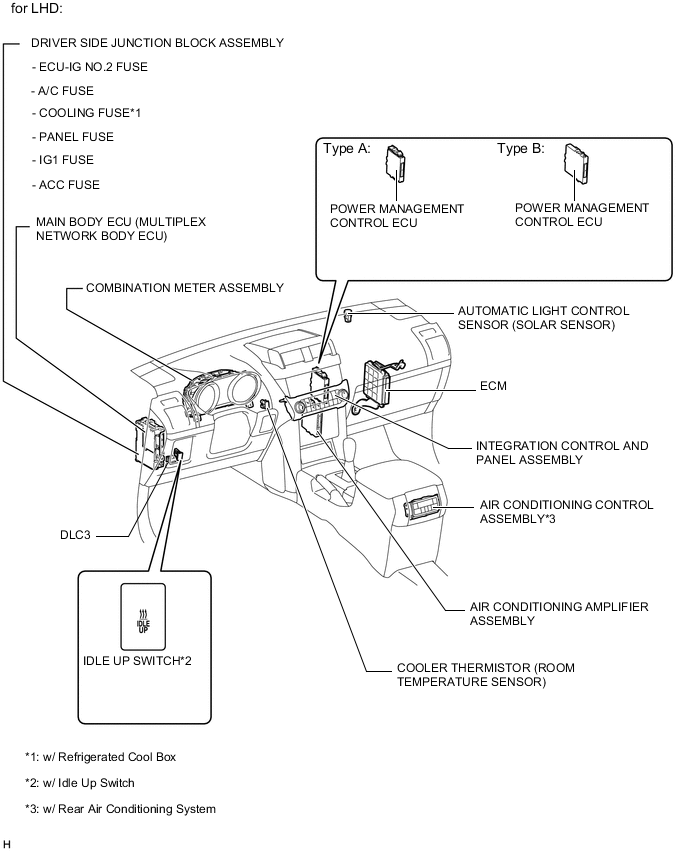

B001D8XE02

ILLUSTRATION

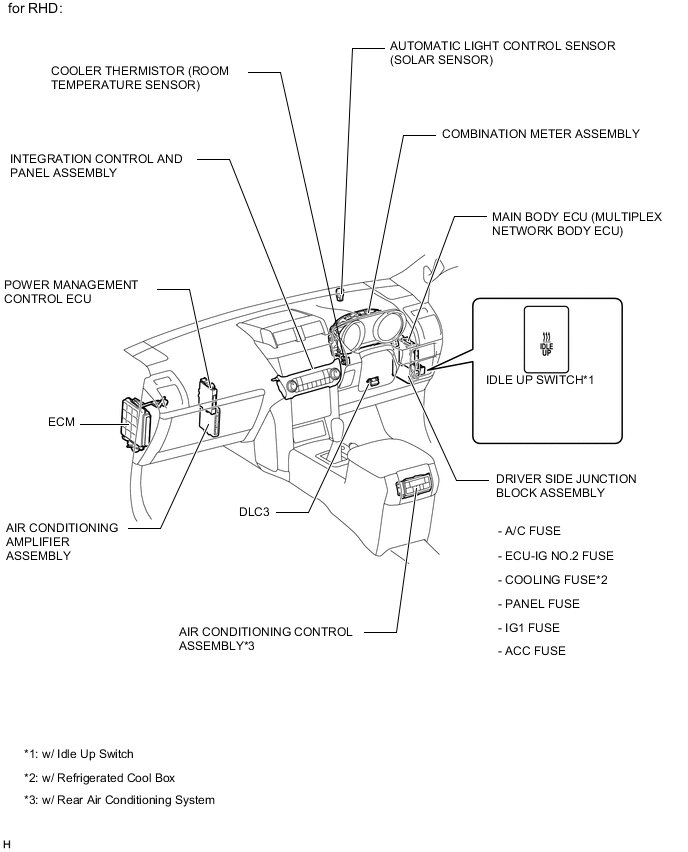

B001EHWE02

ILLUSTRATION

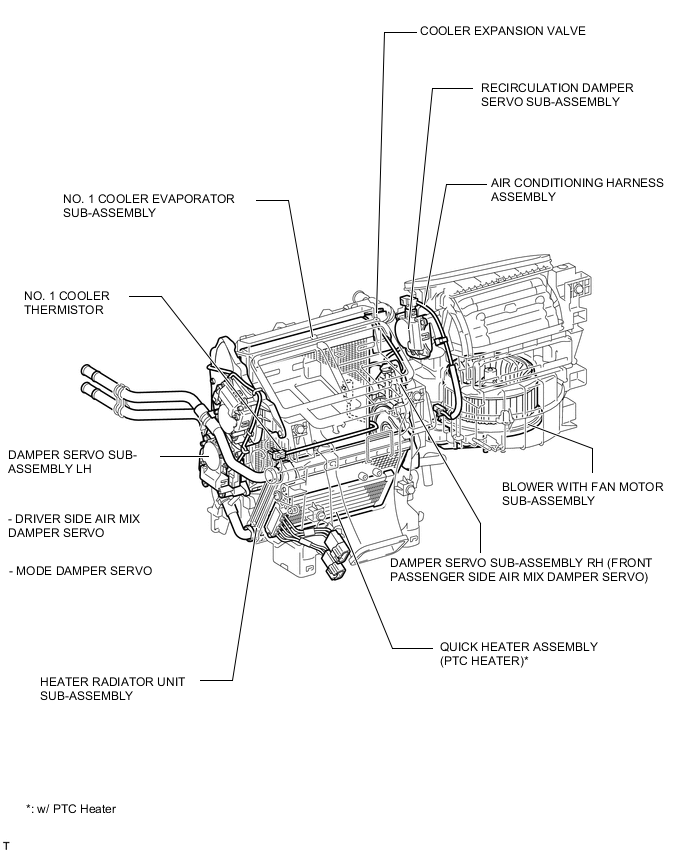

B001G61E07

ILLUSTRATION

B001GNYE03

ILLUSTRATION

B001DHSE01

ILLUSTRATION

B001IFZE01
