FRONT SEAT OUTER BELT ASSEMBLY(for 5 Door) COMPONENTS

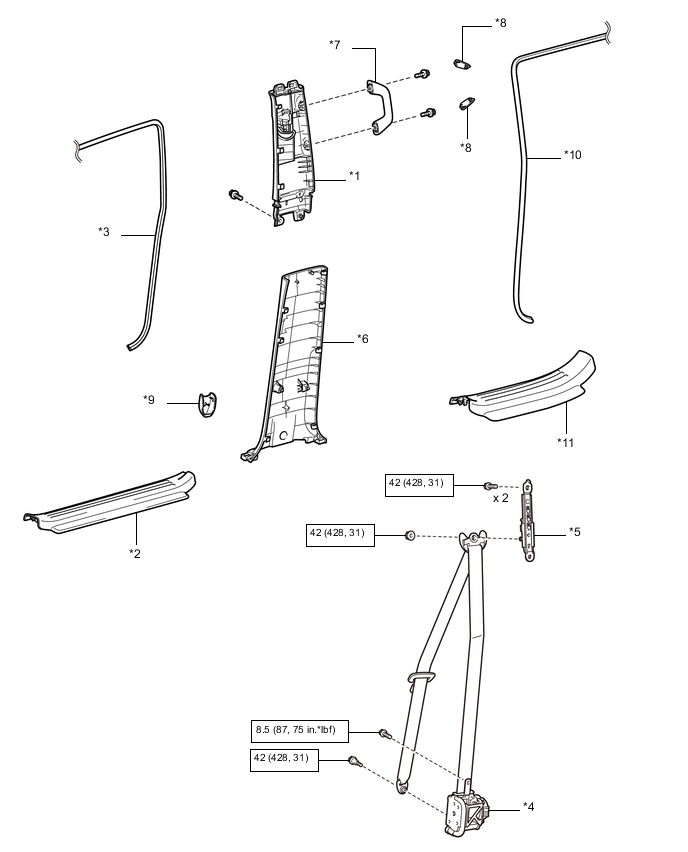

ILLUSTRATION
| *1 | CENTER PILLAR GARNISH LH | *2 | DOOR SCUFF PLATE ASSEMBLY LH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *5 | FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY | *6 | LOWER CENTER PILLAR GARNISH LH |
| *7 | NO. 2 ASSIST GRIP | *8 | NO. 2 ASSIST GRIP PLUG LH |
| *9 | OUTER LAP BELT ANCHOR COVER | *10 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *11 | REAR DOOR SCUFF PLATE LH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

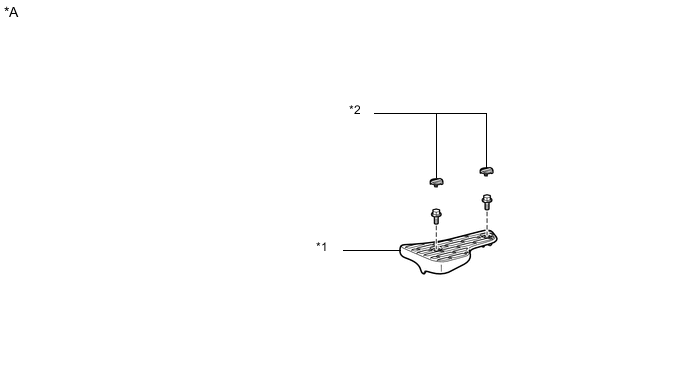

ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | INSIDE QUARTER SCUFF PLATE LH | *2 | REAR NO. 1 FLOOR STEP COVER |
