REAR NO. 1 SEAT ASSEMBLY(for 60/40 Split Slide Walk-in Seat Type LH Side) COMPONENTS

ILLUSTRATION

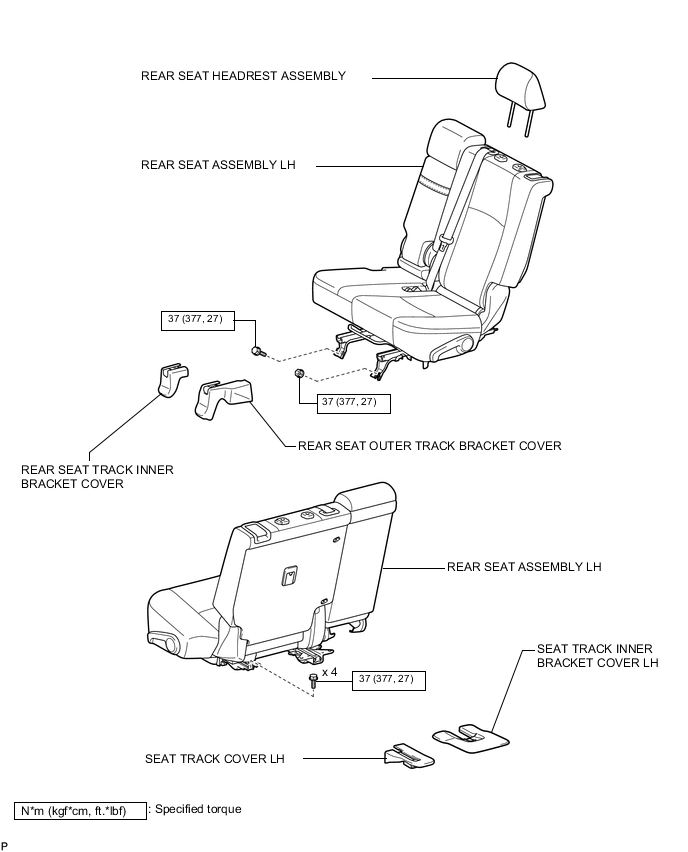

A01XM6LE08

ILLUSTRATION

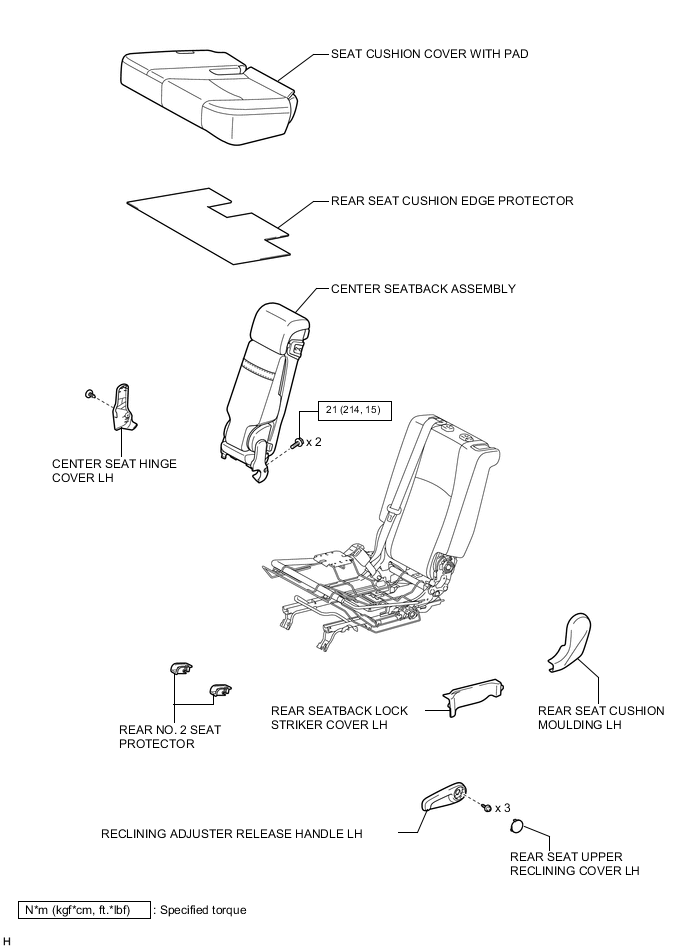

A01XKQKE03

ILLUSTRATION

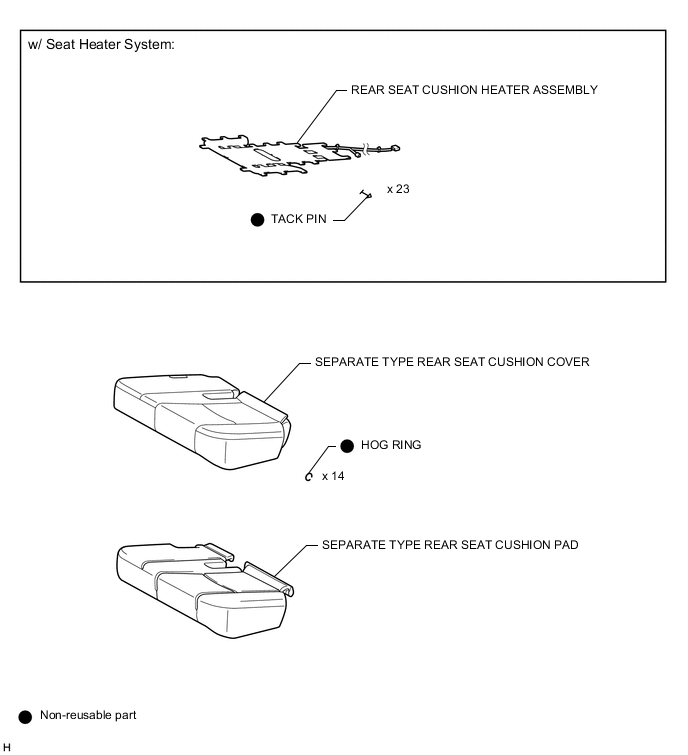

A01XEN3E03

ILLUSTRATION

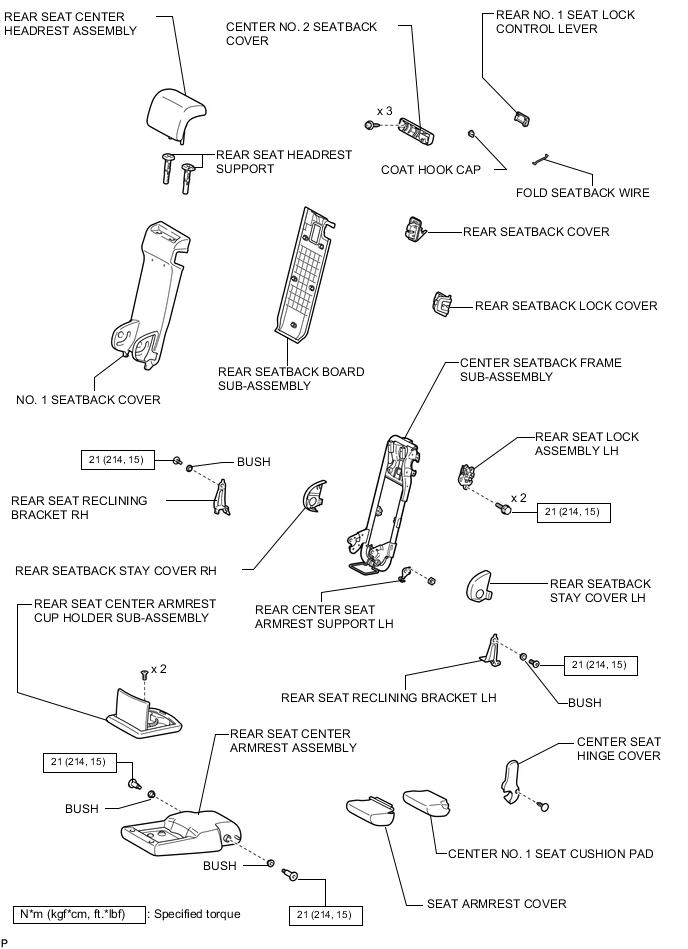

A01XH1QE11

ILLUSTRATION

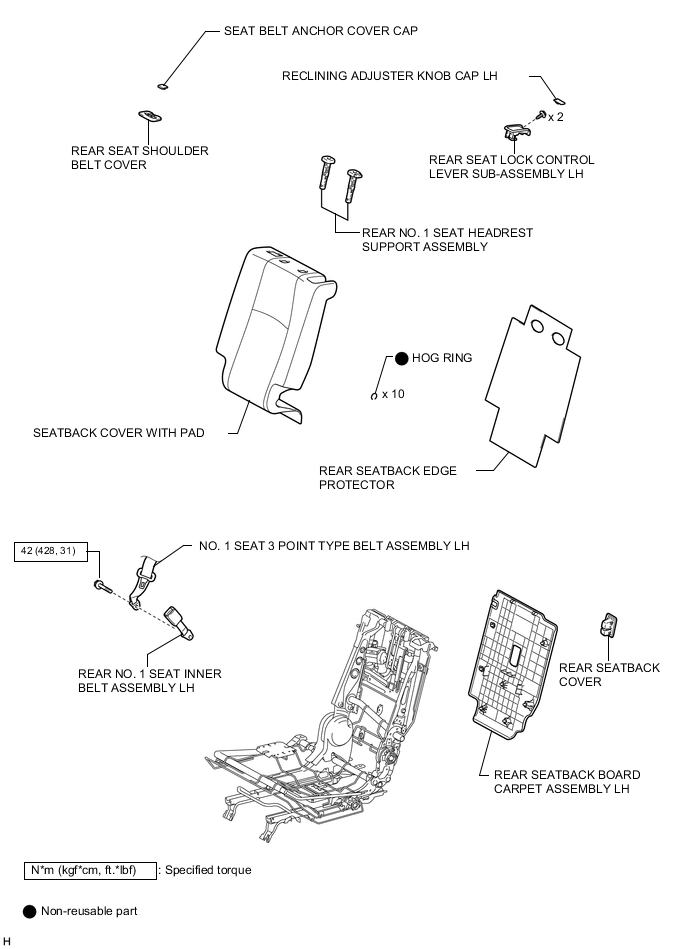

A01XCFVE02

ILLUSTRATION

A01XKVDE02

ILLUSTRATION

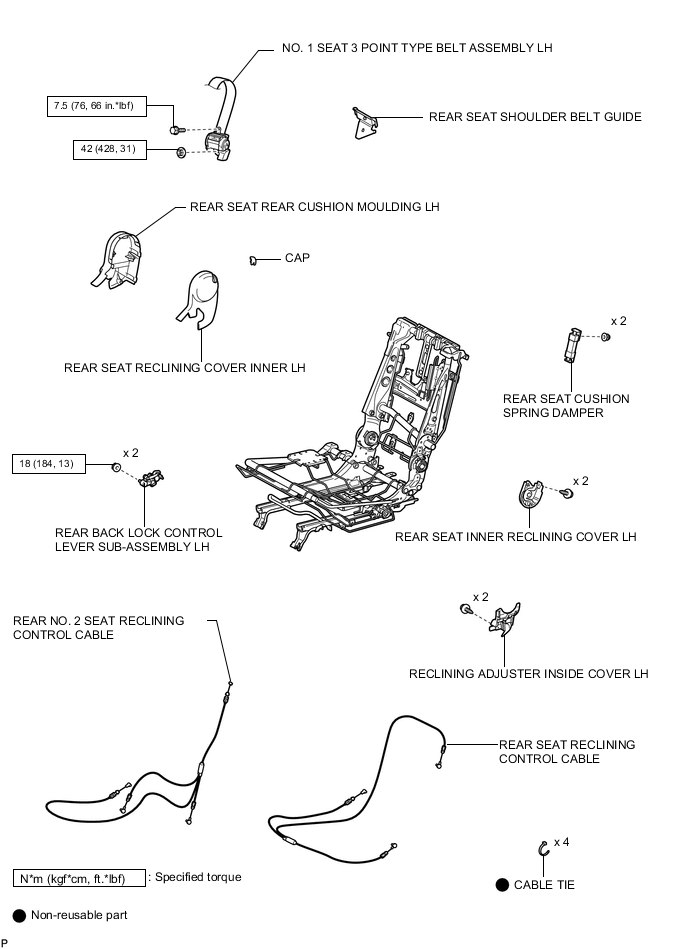

A01XI2EE03

ILLUSTRATION

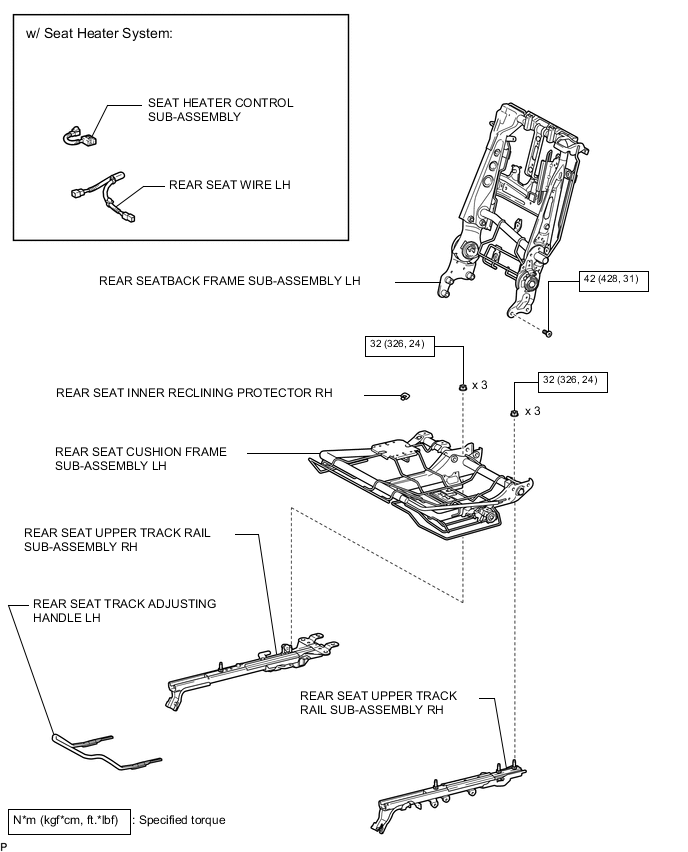

A01XCYYE03
