AIRBAG CUT-OFF INDICATOR LIGHT INSPECTION

PROCEDURE


  1. INSPECT TELLTALE LIGHT ASSEMBLY


    1. B001HRHC01

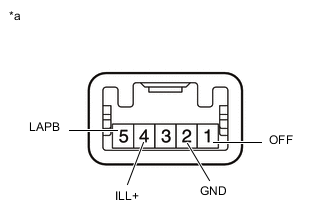

      *a

      Component without harness connected

      (Telltale Light Assembly)

      Apply battery voltage to the connector and check the airbag off indicator LED illumination.

      OK
      Battery Connection Specified Condition

      Positive (+) → 5 (LAPB)

      Negative (-) → 1 (OFF)

      		 Airbag off indicator LED illuminates

      Positive (+) → 5 (LAPB)

      Positive (+) → 4 (ILL+)

      Negative (-) → 1 (OFF)

      Negative (-) → 2 (GND)

      		 Airbag off indicator LED illuminates in dimmed state
      If the result is not as specified, replace the telltale light assembly.
