AIRBAG CUT-OFF INDICATOR LIGHT INSPECTION

PROCEDURE


  1. INSPECT TELLTALE LIGHT ASSEMBLY

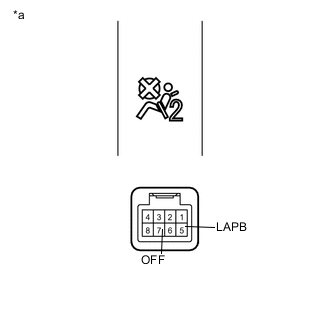

    1. A01XJL0E01
      Text in Illustration
      *a

      Component without harness connected

      (Telltale Light Assembly)

      Apply battery voltage to the connector and check the LED illumination.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → 5 (LAPB)

      Battery negative (-) → 7 (OFF)

      		 LED illuminates

      If the result is not as specified, replace the telltale light assembly.
