PARKING ASSIST ECU(for RHD) COMPONENTS

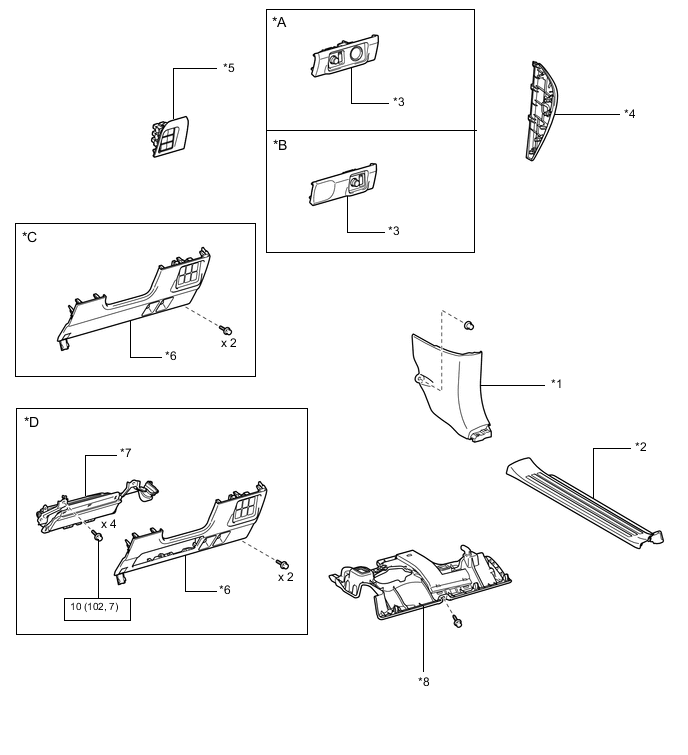

ILLUSTRATION
| *A | w/ Entry and Start System | *B | w/o Entry and Start System |
| *C | w/o Knee Airbag | *D | w/ Knee Airbag |
| *1 | COWL SIDE TRIM BOARD RH | *2 | DOOR SCUFF PLATE ASSEMBLY RH |
| *3 | INSTRUMENT PANEL FINISH PLATE GARNISH | *4 | INSTRUMENT SIDE PANEL RH |
| *5 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | *6 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *7 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

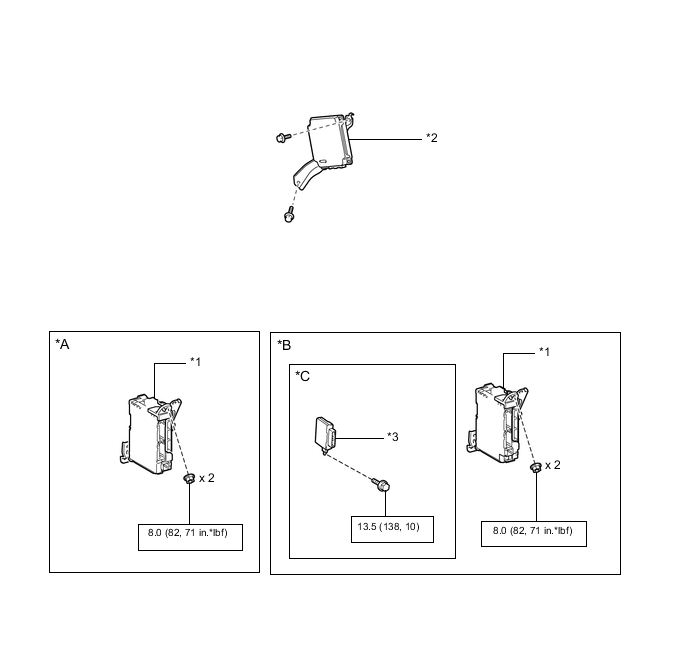

ILLUSTRATION
| *A | for 5L-E | *B | except 5L-E |
| *C | w/ KDSS | - | - |
| *1 | DRIVER SIDE JUNCTION BLOCK ASSEMBLY | *2 | PARKING ASSIST ECU |
| *3 | STABILIZER CONTROL ECU | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
