TOYOTA PARKING ASSIST-SENSOR SYSTEM(w/o Multi-display) Back-up Light Circuit

DESCRIPTION

This circuit sends the back-up light switch signals to the clearance warning ECU.

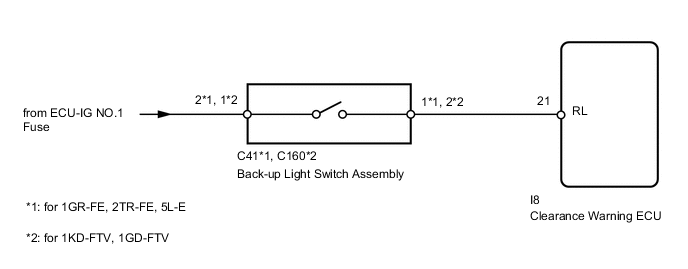

WIRING DIAGRAM

B001EHIE17

CAUTION / NOTICE / HINT

Note

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. INSPECT BACK-UP LIGHT SWITCH ASSEMBLY

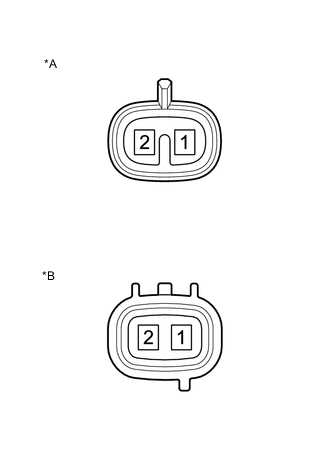

    1. B001G4VE01

      Disconnect the C41*1 or C160*2 back-up light switch assembly connector.

      *1: for 1GR-FE, 2TR-FE, 5L-E

      *2: for 1KD-FTV, 1GD-FTV

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      1 - 2 Pushed Below 1 Ω
      1 - 2 Released 10 kΩ or higher
      Text in Illustration
      *A for 1GR-FE, 2TR-FE, 5L-E
      *B for 1KD-FTV, 1GD-FTV
      Result
      Result Proceed to
      OK A
      NG (for RA61F) B
      NG (for R150F) C
      NG (for G52F) D

    B

    REPLACE BACK-UP LIGHT SWITCH ASSEMBLY Click here

    C

    REPLACE BACK-UP LIGHT SWITCH ASSEMBLY Click here

    D

    REPLACE BACK-UP LIGHT SWITCH ASSEMBLY Click here

    A

  2. CHECK HARNESS AND CONNECTOR (BACK-UP LIGHT SWITCH - BATTERY)

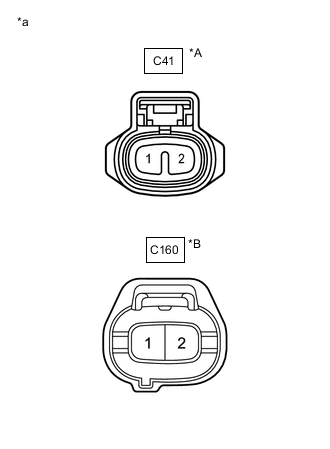

    1. B001H61E01

      Disconnect the C41*1 or C160*2 back-up light switch assembly connector.

      *1: for 1GR-FE, 2TR-FE, 5L-E

      *2: for 1KD-FTV, 1GD-FTV

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      for 1GR-FE, 2TR-FE, 5L-E
      Tester Connection Switch Condition Specified Condition
      C41-2 - Body ground Ignition switch ON 11 to 14 V
      C41-2 - Body ground Ignition switch off Below 1 V
      for 1KD-FTV, 1GD-FTV
      Tester Connection Switch Condition Specified Condition
      C160-2 - Body ground Ignition switch ON 11 to 14 V
      C160-2 - Body ground Ignition switch off Below 1 V
      Text in Illustration
      *A for 1GR-FE, 2TR-FE, 5L-E
      *B for 1KD-FTV, 1GD-FTV
      *a

      Front view of wire harness connector

      (to Back-up Light Switch Assembly)

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU - BACK-UP LIGHT SWITCH)


    1. Disconnect the I8 clearance warning ECU connector.

    2. Disconnect the C41*1 or C160*2 back-up light switch assembly connector.

      *1: for 1GR-FE, 2TR-FE, 5L-E

      *2: for 1KD-FTV, 1GD-FTV

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for 1GR-FE, 2TR-FE, 5L-E
      Tester Connection Condition Specified Condition
      I8-21 (RL) - C41-1 (RL) Always Below 1 Ω
      I8-21 (RL) - Body ground Always 10 kΩ or higher
      for 1KD-FTV, 1GD-FTV
      Tester Connection Condition Specified Condition
      I8-21 (RL) - C160-1 (RL) Always Below 1 Ω
      I8-21 (RL) - Body ground Always 10 kΩ or higher

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
