NOISE FILTER INSTALLATION

PROCEDURE


  1. INSTALL RADIO SETTING CONDENSER


    1. A01XD6X

      Attach the clamp to temporarily install the radio setting condenser with wire harness to the back door.

    2. Install the radio setting condenser with the bolt.

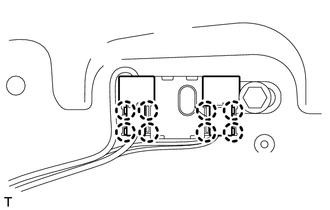

    3. A01XLFV

      Attach the 8 claws to install the terminal cover with wire harness to the condenser.

  2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    Click here

  3. INSTALL BACK DOOR INSIDE HANDLE BEZEL (for Face to Face Seat Type)

    Click here

  4. INSTALL BACK DOOR LOCK COVER (w/o Back Door Tire Carrier)

    Click here

  5. INSTALL TOOL CASE

    Click here

  6. INSTALL UPPER TOOL BOX PANEL SUB-ASSEMBLY

    Click here

  7. INSTALL BACK DOOR TRIM COVER

    Click here

  8. INSTALL BACK DOOR SIDE GARNISH RH

    Click here

  9. INSTALL BACK DOOR SIDE GARNISH LH

    Click here

  10. INSTALL BACK DOOR CENTER GARNISH

    Click here
