NOISE FILTER INSPECTION

PROCEDURE


  1. INSPECT RADIO SETTING CONDENSER

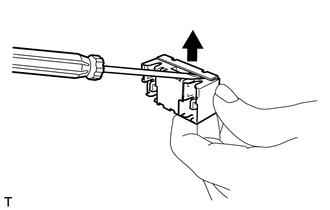

    1. A01XCIQ

      Using a screwdriver, move the cover as shown in the illustration.

      Tech Tips

      Tape the screwdriver tip before use.

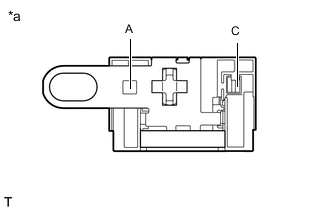

    2. A01XM5JE02
      Text in Illustration
      *a

      Component without harness connected

      (Radio Setting Condenser)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A - C Always 10 kΩ or higher

      If the result is not as specified, replace the radio setting condenser.

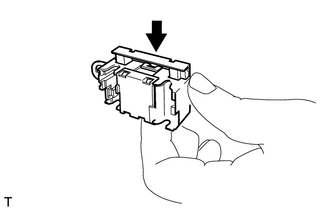

    3. A01XI9M

      Move the cover as shown in the illustration.
