NOISE FILTER ON-VEHICLE INSPECTION

PROCEDURE

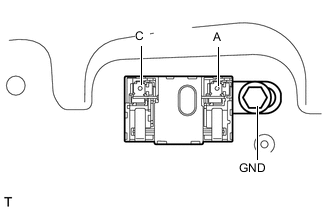

  1. INSPECT RADIO SETTING CONDENSER


    1. A01XKNOE02

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A - GND Always Below 1 Ω
      C - GND Always Below 1 Ω

      If the result is not as specified, replace the radio setting condenser.
