RADIO RECEIVER(for Radio and Display Type) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Click here

  4. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY


    1. A01XHGT

      Remove the 4 bolts.

    2. A01XHIG

      Pull the radio and display receiver assembly to detach the 7 clips on the backside of the radio and display receiver assembly.

    3. Disconnect each connector and remove the radio and display receiver assembly.

  5. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Click here

  6. REMOVE HAZARD SWITCH WIRE

    Click here

  7. REMOVE NAVIGATION ECU (w/ Navigation System)

    Click here

  8. REMOVE NO. 1 RADIO RECEIVER BRACKET

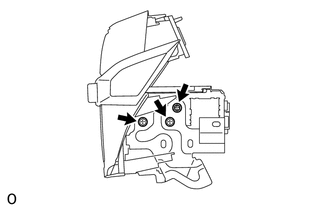

    1. A01XF2V

      Remove the 3 screws and No. 1 radio receiver bracket.

  9. REMOVE NO. 2 RADIO RECEIVER BRACKET

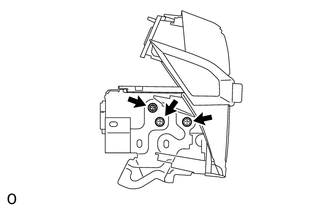

    1. A01XM6E

      Remove the 3 screws and No. 2 radio receiver bracket.

  10. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here
