RADIO RECEIVER(for Radio and Display Type) COMPONENTS

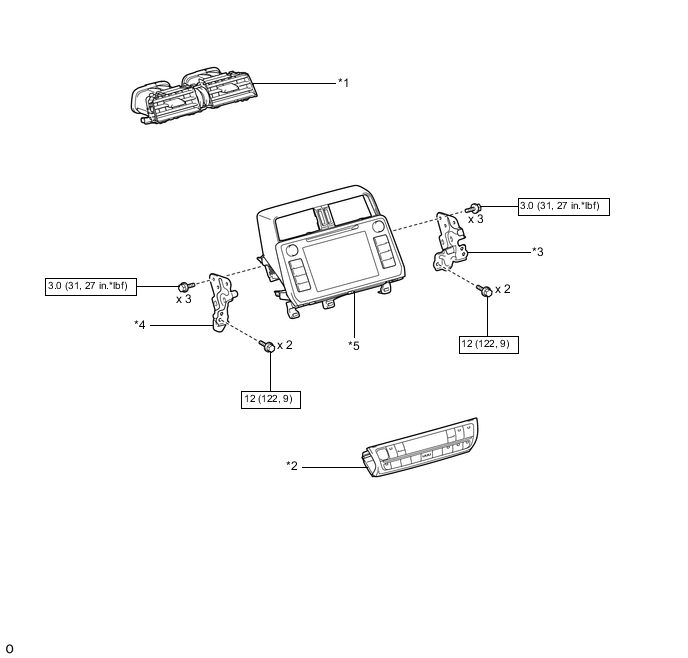

ILLUSTRATION

B001G1SC01
*1 CENTER INSTRUMENT PANEL REGISTER ASSEMBLY *2 INTEGRATION CONTROL AND PANEL ASSEMBLY
*3 NO. 1 RADIO RECEIVER BRACKET *4 NO. 2 RADIO RECEIVER BRACKET
*5 RADIO AND DISPLAY RECEIVER ASSEMBLY - -
B001IGR N*m (kgf*cm, ft.*lbf): Specified torque - -
