AIRBAG SYSTEM TERMINALS OF ECU

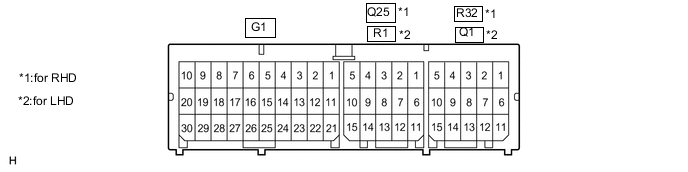

  1. CENTER AIRBAG SENSOR(w/o Side Airbag)

    B001I0XE01
    Terminal No. Symbol Destination
    G1-3 P- Instrument panel passenger airbag (Front passenger side squib)
    G1-4 P+ Instrument panel passenger airbag (Front passenger side squib)
    G1-5 D+ Steering pad (Driver side squib)
    G1-6 D- Steering pad (Driver side squib)
    G1-7 D2- Steering pad (Driver side squib 2nd step)
    G1-8 D2+ Steering pad (Driver side squib 2nd step)

    G1-9

    *1

    		 DK+ Lower No. 1 instrument panel airbag (Driver side knee squib)

    G1-10

    *1

    		 DK- Lower No. 1 instrument panel airbag (Driver side knee squib)

    G1-11

    *2

    		 MSW+ Passenger airbag cutoff switch

    G1-12

    *2

    		 MSW- Passenger airbag cutoff switch
    G1-13 CANH CAN communication line

    G1-17

    *2

    		 P-AB Airbag cutoff indicator
    G1-18*5 GSW Main body ECU
    G1-21 IG2 IGN fuse
    G1-22 CANL CAN communication line
    G1-25 E1 Ground
    G1-26 E2 Ground
    G1-27 -SR Front airbag sensor RH
    G1-28 -SL Front airbag sensor LH
    G1-29 +SR Front airbag sensor RH
    G1-30 +SL Front airbag sensor LH

    R1-1

    *4

    		 PD- Front seat outer belt LH (Front pretensioner squib LH)

    R1-2

    *4

    		 PD+ Front seat outer belt LH (Front pretensioner squib LH)

    R1-11

    *4

    		 DBE+ Front seat inner belt LH (Seat belt buckle switch LH)

    R1-12

    *4

    		 DBE- Front seat inner belt LH (Seat belt buckle switch LH)

    Q25-1

    *3

    		 PD- Front seat outer belt RH (Front pretensioner squib RH)

    Q25-2

    *3

    		 PD+ Front seat outer belt RH (Front pretensioner squib RH)

    Q25-11

    *3

    		 DBE+ Front seat inner belt RH (Seat belt buckle switch RH)

    Q25-12

    *3

    		 DBE- Front seat inner belt RH (Seat belt buckle switch RH)

    Q1-4

    *4

    		 PP+ Front seat outer belt RH (Front pretensioner squib RH)

    Q1-5

    *4

    		 PP- Front seat outer belt RH (Front pretensioner squib RH)

    R32-4

    *3

    		 PP+ Front seat outer belt LH (Front pretensioner squib LH)

    R32-5

    *3

    		 PP- Front seat outer belt LH (Front pretensioner squib LH)

    • *1: w/ Lower No. 1 Instrument Panel Airbag

    • *2: w/ Passenger Airbag Cutoff Switch

    • *3: for RHD

    • *4: for LHD

    • *5: w/ Speed-sensitive Automatic Door Lock Function

  2. CENTER AIRBAG SENSOR(w/ Side Airbag)

    B001CYKE24
    Terminal No. Symbol Destination
    G1-3 P- Instrument panel passenger airbag (Front passenger side squib)
    G1-4 P+ Instrument panel passenger airbag (Front passenger side squib)
    G1-5 D+ Steering pad (Driver side squib)
    G1-6 D- Steering pad (Driver side squib)
    G1-7 D2- Steering pad (Driver side squib 2nd step)
    G1-8 D2+ Steering pad (Driver side squib 2nd step)
    G1-9 DK+ Lower No. 1 instrument panel airbag (Driver side knee squib)
    G1-10 DK- Lower No. 1 instrument panel airbag (Driver side knee squib)

    G1-11

    *2

    		 MSW+ Passenger airbag cutoff switch

    G1-12

    *2

    		 MSW- Passenger airbag cutoff switch
    G1-13 CANH CAN communication line

    G1-17

    *2

    		 P-AB Airbag cutoff indicator
    G1-18*6 GSW Main body ECU
    G1-21 IG2 IGN fuse
    G1-22 CANL CAN communication line
    G1-24*1 GSW3 Telematics transceiver
    G1-25 E1 Ground
    G1-26 E2 Ground
    G1-27 -SR Front airbag sensor RH
    G1-28 -SL Front airbag sensor LH
    G1-29 +SR Front airbag sensor RH
    G1-30 +SL Front airbag sensor LH
    R49-1 SFL+ Front seat side airbag LH (Front side squib LH)
    R49-2 SFL- Front seat side airbag LH (Front side squib LH)
    R49-3 ICL- Curtain shield airbag LH (Curtain shield squib LH)
    R49-4 ICL+ Curtain shield airbag LH (Curtain shield squib LH)
    R49-5 PL+ Front seat outer belt LH (Front pretensioner squib LH)
    R49-6 PL- Front seat outer belt LH (Front pretensioner squib LH)

    R49-10

    *3

    		 LBE+ Front seat inner belt LH (Seat belt buckle switch LH)

    R49-18

    *3

    		 LBE- Front seat inner belt LH (Seat belt buckle switch LH)
    R49-23 BBL- Rear airbag sensor LH
    R49-24 BBL+ Rear airbag sensor LH
    Q43-3 PR- Front seat outer belt RH (Front pretensioner squib RH)
    Q43-4 PR+ Front seat outer belt RH (Front pretensioner squib RH)
    Q43-5 ICR+ Curtain shield airbag RH (Curtain shield squib RH)
    Q43-6 ICR- Curtain shield airbag RH (Curtain shield squib RH)
    Q43-7 SFR- Front seat side airbag RH (Front side squib RH)
    Q43-8 SFR+ Front seat side airbag RH (Front side squib RH)

    Q43-15

    *4

    		 RBE+ Front seat inner belt RH (Seat belt buckle switch RH)
    Q43-17 BBR+ Rear airbag sensor RH
    Q43-18 BBR- Rear airbag sensor RH

    Q43-21

    *5

    		 BDR+ Rear floor side airbag sensor

    Q43-22

    *5

    		 BDR- Rear floor side airbag sensor

    Q43-23

    *4

    		 RBE- Front seat inner belt RH (Seat belt buckle switch RH)

    • *1: w/ Telematics Transceiver

    • *2: w/ Passenger Airbag Cutoff Switch

    • *3: for LHD

    • *4: for RHD

    • *5: for 5 Door

    • *6: w/ Speed-sensitive Automatic Door Lock Function
