TIRE PRESSURE WARNING VALVE DISPOSAL

CAUTION / NOTICE / HINT

Tech Tips

The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it correctly.

PROCEDURE


  1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

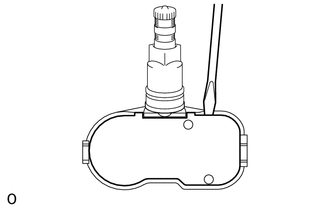

    1. A01XG9P

      Using the tip of a screwdriver, pry off the back cover.

    2. B001I97E01
      Text in Illustration
      *1 Terminal
      *2 Lithium Battery

      Cut the 2 terminals that connect the battery to the base board and remove the battery.

      Tech Tips

      The battery and base board are covered with urethane.
