STABILIZER CONTROL ECU REMOVAL

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   Note




   • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

   • When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

2. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

   Click here

3. REMOVE STABILIZER CONTROL ECU

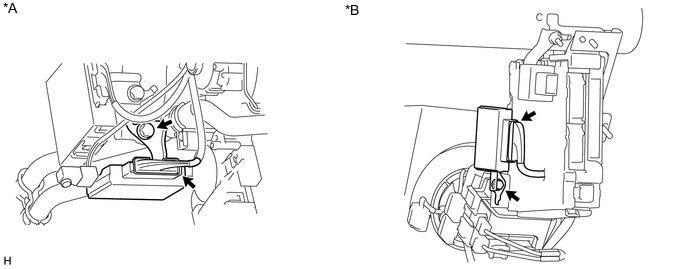

   1. Disconnect the connector.



      Text in Illustration

      *A

      for LHD

      *B

      for RHD

   2. Remove the bolt and stabilizer control ECU.

      Note




      • Avoid any impact to the stabilizer control ECU.

      • Replace the stabilizer control ECU with a new one if it is dropped.
