TRANSFER SYSTEM SYSTEM DIAGRAM

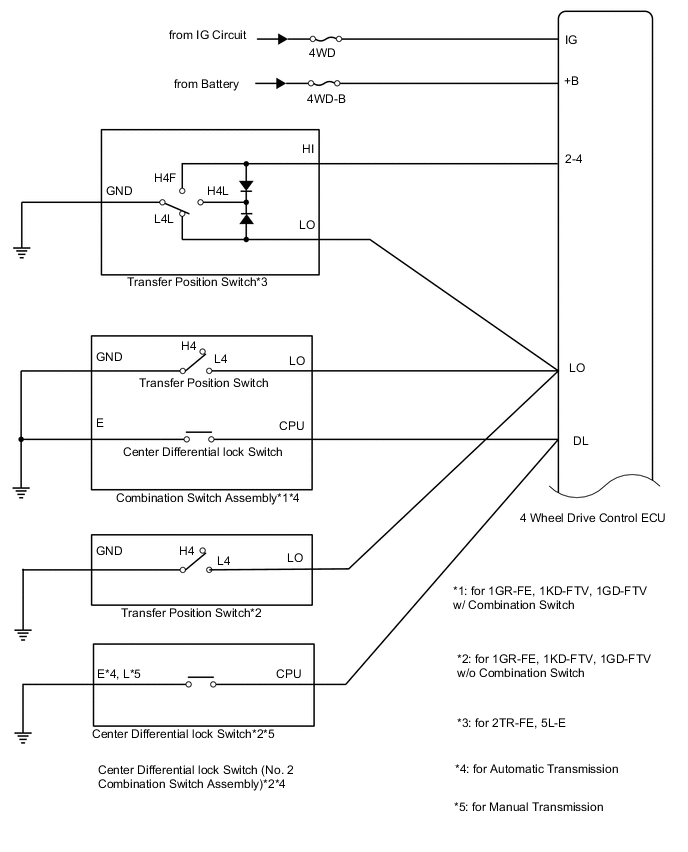

B001G4ZE01

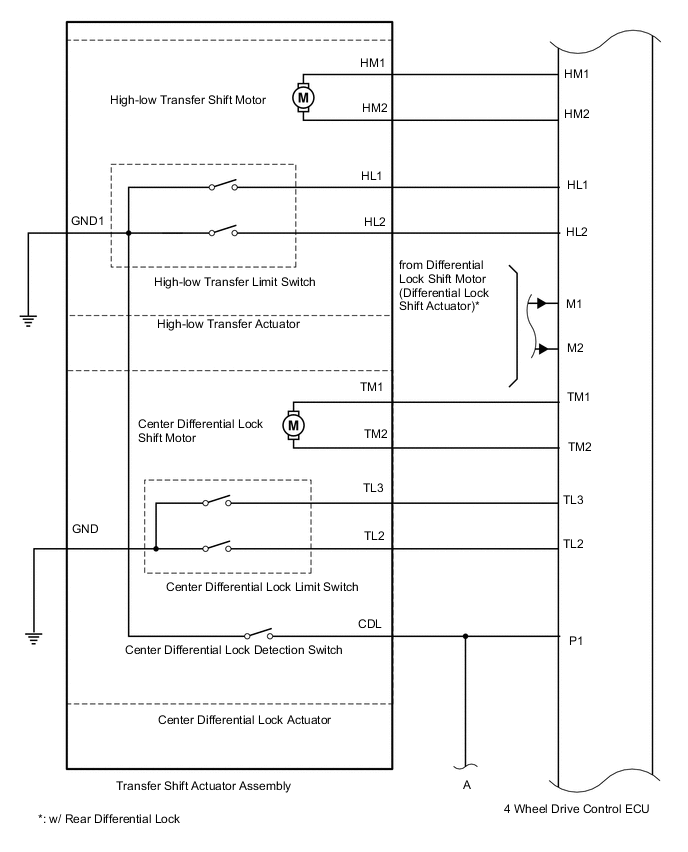

B001EVDE01

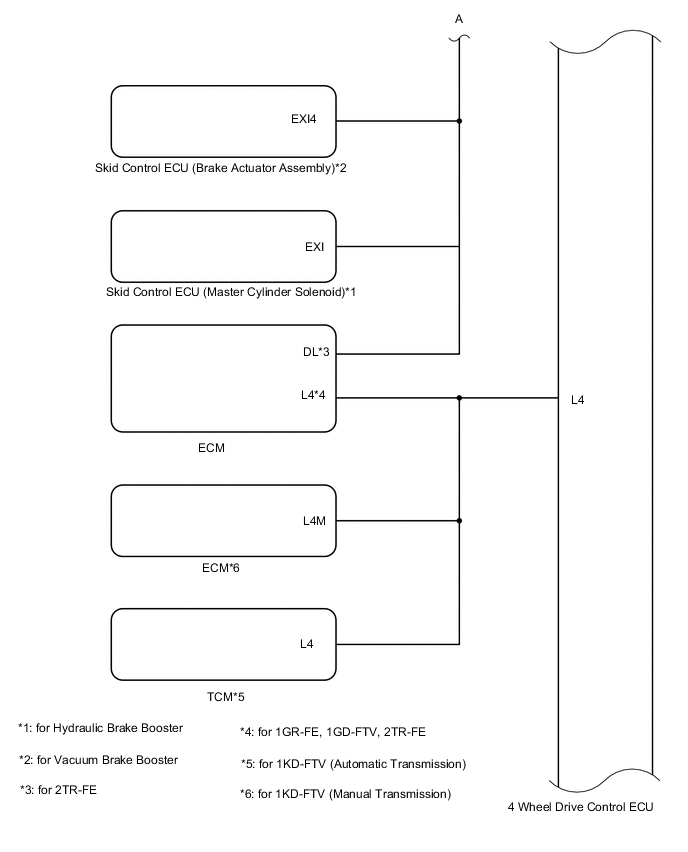

B001DK8E01

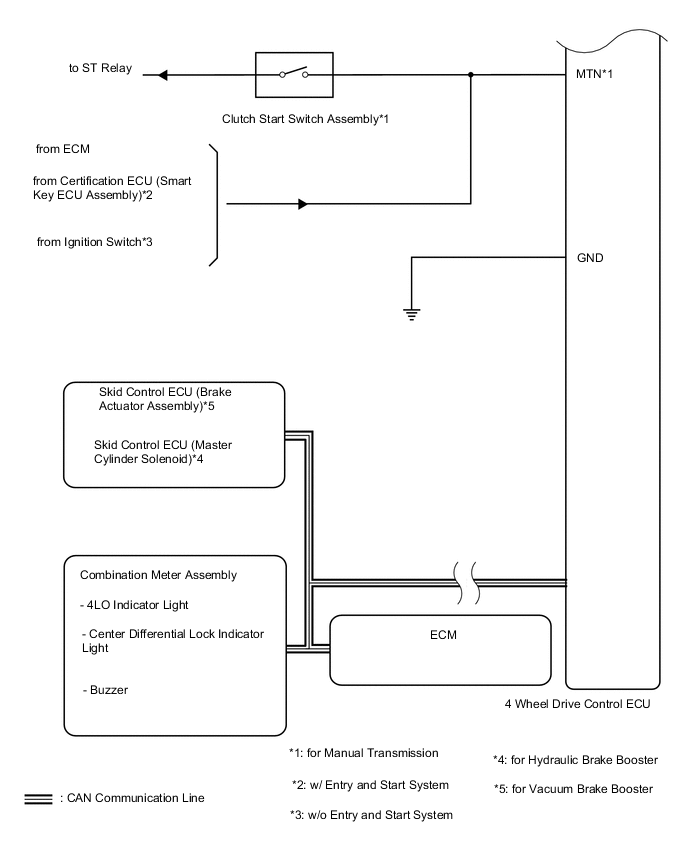

B001CNSE01
Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
4 wheel drive control ECU

Skid control ECU (Master cylinder solenoid)*1

Skid control ECU (Brake actuator assembly)*2

  • High-low actuator failure signal

  • L4 status signal

  • 4WD status signal*1

 CAN communication system

Skid control ECU (Master cylinder solenoid)*1

Skid control ECU (Brake actuator assembly)*2

 4 wheel drive control ECU

  • Wheel speed sensor error signal

  • Wheel speed signal

  • Vehicle speed signal

  • Stop light switch signal

 CAN communication system
4 wheel drive control ECU ECM

  • Cruise control cancel request signal

  • L4 status signal

  • Center Differential Lock status signal

 CAN communication system
ECM 4 wheel drive control ECU

  • ENG fail signal

  • Engine speed signal

  • Shift position P signal*3

  • Shift position N*3 or shift lever neutral signal*4

  • Neutral position switch error flag*4

 CAN communication system
4 wheel drive control ECU Combination meter assembly

  • L4 indicator ON and flashing request signal

  • Center differential lock indicator ON and flashing request signal

  • Buzzer sound demand signal

 CAN communication system
