TRANSFER SYSTEM PARTS LOCATION

ILLUSTRATION

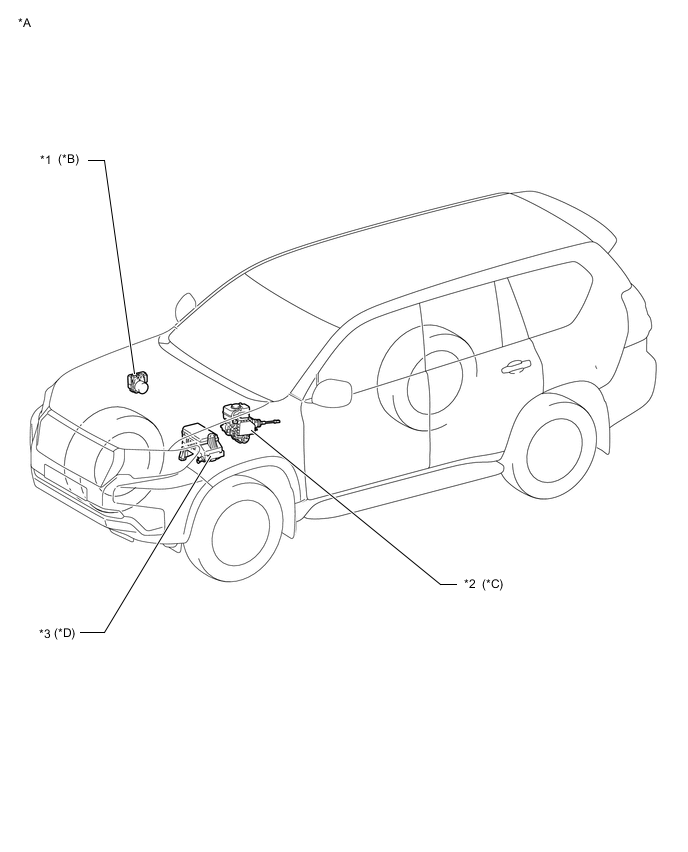

B001H2CC01
*A for LHD *B for Vacuum Brake Booster
*C for Hydraulic Brake Booster *D for 5L-E
*1

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

 *2

HYDRAULIC BRAKE BOOSTER ASSEMBLY

- SKID CONTROL ECU (MASTER CYLINDER SOLENOID)
*3

ENGINE ROOM RELAY BLOCK

- 4WD-B FUSE

 - -

ILLUSTRATION

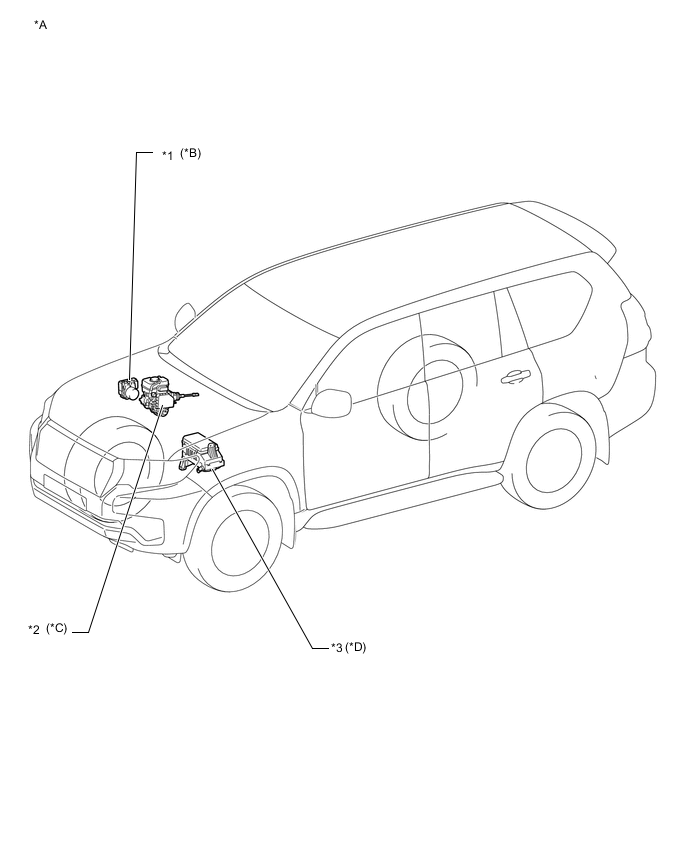

B001GJGC01
*A for RHD *B for Vacuum Brake Booster
*C for Hydraulic Brake Booster *D for 5L-E
*1

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

 *2

HYDRAULIC BRAKE BOOSTER ASSEMBLY

- SKID CONTROL ECU (MASTER CYLINDER SOLENOID)
*3

ENGINE ROOM RELAY BLOCK

- 4WD-B FUSE

 - -

ILLUSTRATION

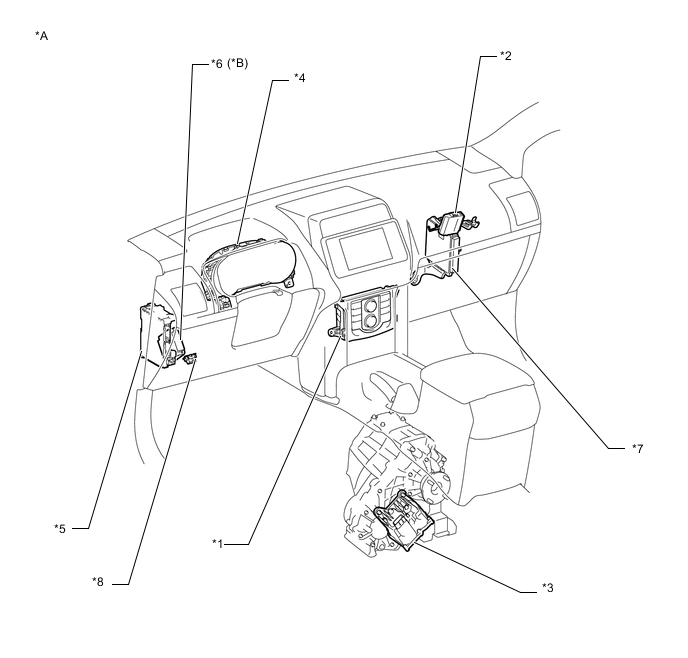

B001CRGC01
*A for LHD (w/ Combination Switch) *B for 1KD-FTV (Automatic Transmission)
*1

COMBINATION SWITCH ASSEMBLY

- TRANSFER POSITION SWITCH

- CENTER DIFFERENTIAL LOCK SWITCH

 *2 4 WHEEL DRIVE CONTROL ECU
*3

TRANSFER SHIFT ACTUATOR ASSEMBLY

- HIGH-LOW TRANSFER SHIFT ACTUATOR


  • HIGH-LOW TRANSFER SHIFT MOTOR

  • HIGH-LOW TRANSFER LIMIT SWITCH

- CENTER DIFFERENTIAL LOCK ACTUATOR


  • CENTER DIFFERENTIAL LOCK SHIFT MOTOR

  • CENTER DIFFERENTIAL LOCK LIMIT SWITCH

  • CENTER DIFFERENTIAL LOCK DETECTION SWITCH

 *4

COMBINATION METER ASSEMBLY

- 4LO INDICATOR LIGHT

- CENTER DIFFERENTIAL LOCK INDICATOR LIGHT

- BUZZER
*5

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- 4WD FUSE

- 4WD-B FUSE

 *6 TCM
*7 ECM *8 DLC3

ILLUSTRATION

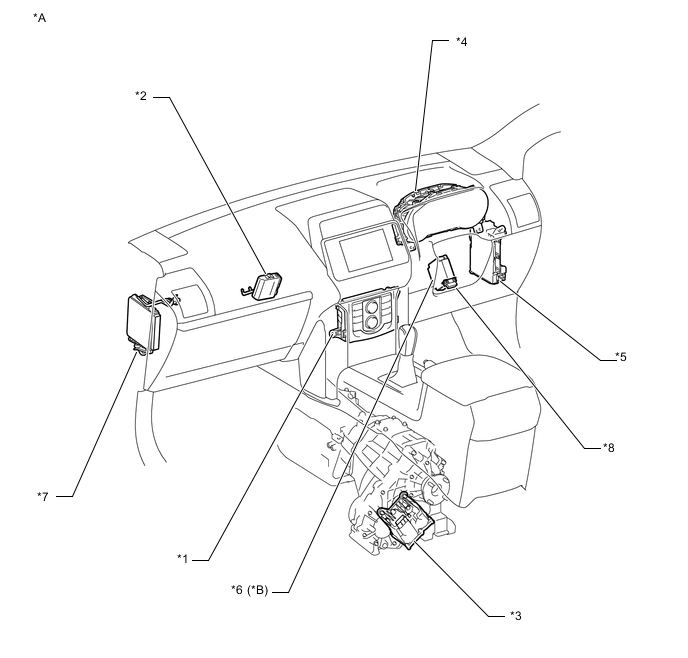

B001HFIC01
*A for RHD (w/ Combination Switch) *B for 1KD-FTV (Automatic Transmission)
*1

COMBINATION SWITCH ASSEMBLY

- TRANSFER POSITION SWITCH

- CENTER DIFFERENTIAL LOCK SWITCH

 *2 4 WHEEL DRIVE CONTROL ECU
*3

TRANSFER SHIFT ACTUATOR ASSEMBLY

- HIGH-LOW TRANSFER SHIFT ACTUATOR


  • HIGH-LOW TRANSFER SHIFT MOTOR

  • HIGH-LOW TRANSFER LIMIT SWITCH

- CENTER DIFFERENTIAL LOCK ACTUATOR


  • CENTER DIFFERENTIAL LOCK SHIFT MOTOR

  • CENTER DIFFERENTIAL LOCK LIMIT SWITCH

  • CENTER DIFFERENTIAL LOCK DETECTION SWITCH

 *4

COMBINATION METER ASSEMBLY

- 4LO INDICATOR LIGHT

- CENTER DIFFERENTIAL LOCK INDICATOR LIGHT

- BUZZER
*5

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- 4WD FUSE

- 4WD-B FUSE

 *6 TCM
*7 ECM *8 DLC3

ILLUSTRATION

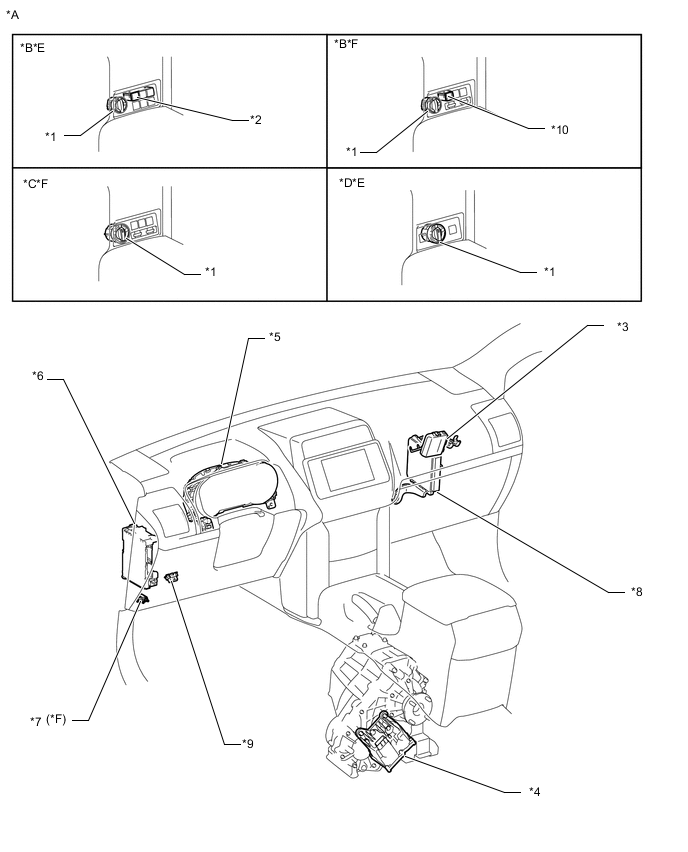

B001DVYC01
*A for LHD (w/o Combination Switch) *B for 1GR-FE, 1KD-FTV, 1GD-FTV
*C for 5L-E, 2TR-FE *D for 2TR-FE
*E for Automatic Transmission *F for Manual Transmission
*1 TRANSFER POSITION SWITCH *2

NO. 2 COMBINATION SWITCH ASSEMBLY

- CENTER DIFFERENTIAL LOCK SWITCH
*3 4 WHEEL DRIVE CONTROL ECU *4

TRANSFER SHIFT ACTUATOR ASSEMBLY

- HIGH-LOW TRANSFER SHIFT ACTUATOR


  • HIGH-LOW TRANSFER SHIFT MOTOR

  • HIGH-LOW TRANSFER LIMIT SWITCH

- CENTER DIFFERENTIAL LOCK ACTUATOR


  • CENTER DIFFERENTIAL LOCK SHIFT MOTOR

  • CENTER DIFFERENTIAL LOCK LIMIT SWITCH

  • CENTER DIFFERENTIAL LOCK DETECTION SWITCH
*5

COMBINATION METER ASSEMBLY

- 4LO INDICATOR LIGHT

- CENTER DIFFERENTIAL LOCK INDICATOR LIGHT

- BUZZER

 *6

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- 4WD FUSE

- 4WD-B FUSE (except 5L-E)
*7 CLUTCH START SWITCH ASSEMBLY *8 ECM
*9 DLC3 *10 CENTER DIFFERENTIAL LOCK SWITCH

ILLUSTRATION

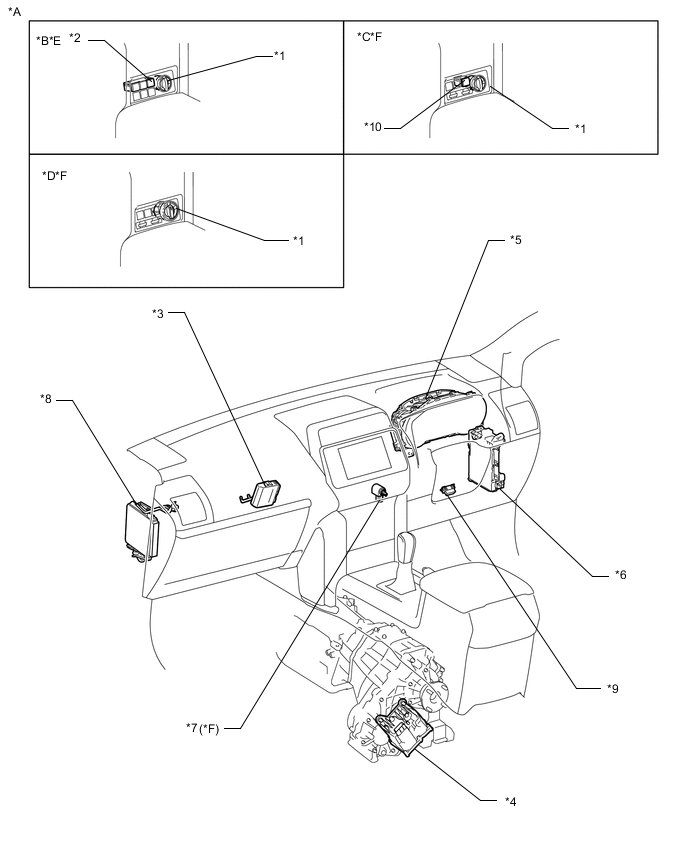

B001G83C01
*A for RHD (w/o Combination Switch) *B for 1GR-FE, 1KD-FTV, 1GD-FTV
*C for 1KD-FTV, 1GD-FTV *D for 5L-E
*E for Automatic Transmission *F for Manual Transmission
*1 TRANSFER POSITION SWITCH *2

NO. 2 COMBINATION SWITCH ASSEMBLY

- CENTER DIFFERENTIAL LOCK SWITCH
*3 4 WHEEL DRIVE CONTROL ECU *4

TRANSFER SHIFT ACTUATOR ASSEMBLY

- HIGH-LOW TRANSFER SHIFT ACTUATOR


  • HIGH-LOW TRANSFER SHIFT MOTOR

  • HIGH-LOW TRANSFER LIMIT SWITCH

- CENTER DIFFERENTIAL LOCK ACTUATOR


  • CENTER DIFFERENTIAL LOCK SHIFT MOTOR

  • CENTER DIFFERENTIAL LOCK LIMIT SWITCH

  • CENTER DIFFERENTIAL LOCK DETECTION SWITCH
*5

COMBINATION METER ASSEMBLY

- 4LO INDICATOR LIGHT

- CENTER DIFFERENTIAL LOCK INDICATOR LIGHT

- BUZZER

 *6

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- 4WD FUSE

- 4WD-B FUSE (except 5L-E)
*7 CLUTCH START SWITCH ASSEMBLY *8 ECM
*9 DLC3 *10 CENTER DIFFERENTIAL LOCK SWITCH
