WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Entry and Start System) SYSTEM DIAGRAM


  1. for 5L-E:

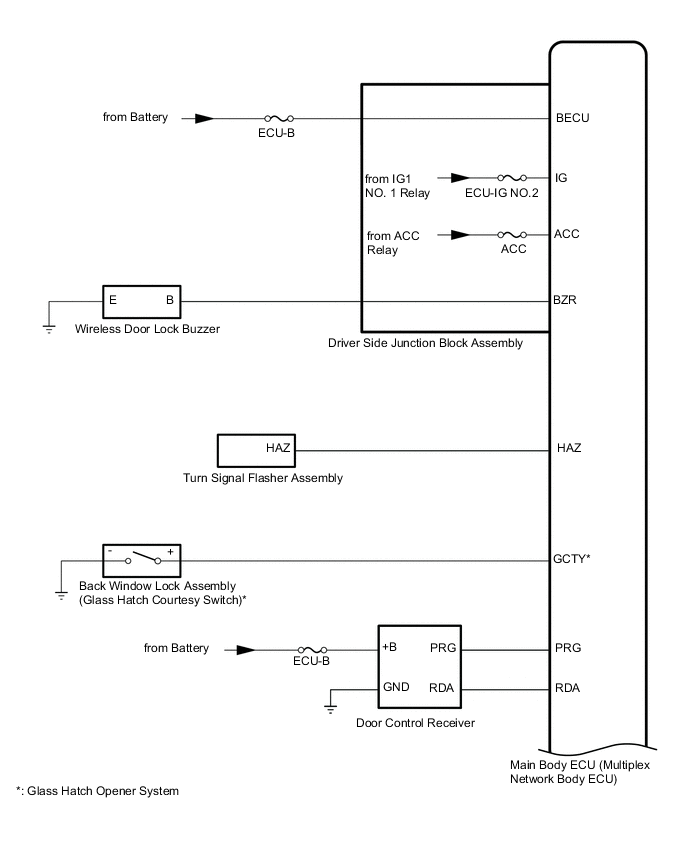

    B001GQLE01
    B001F85E01
    B001DPPE01
    B001F9AE01
    B001FZWE01

  2. except 5L-E:

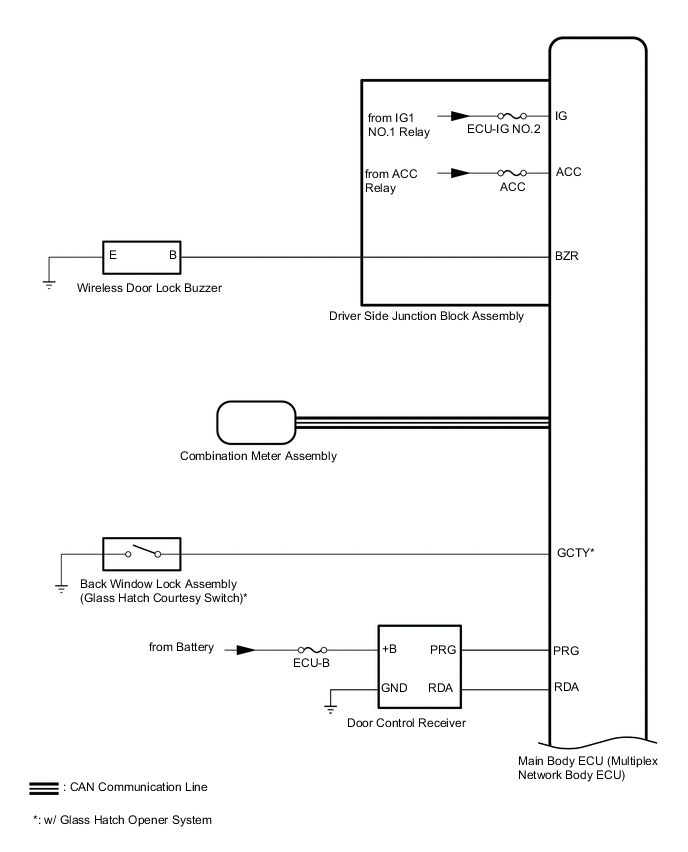

    B001IEEE01
    B001CFOE01
    B001HIYE01
    B001DBJE01

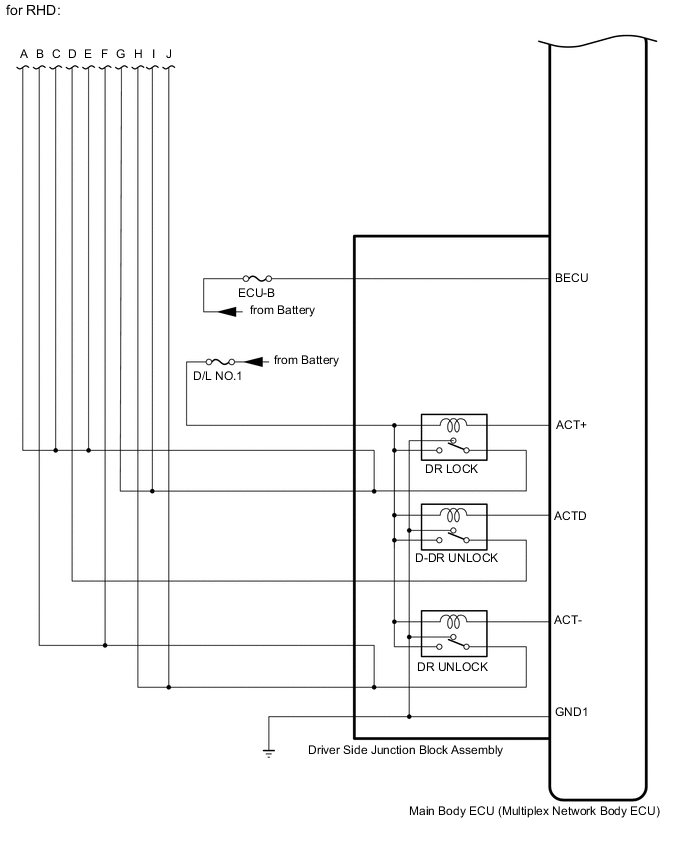

    B001FHFE01
