FUEL SYSTEM PARTS LOCATION
ILLUSTRATION
ILLUSTRATION
| *1 | for LHD: |

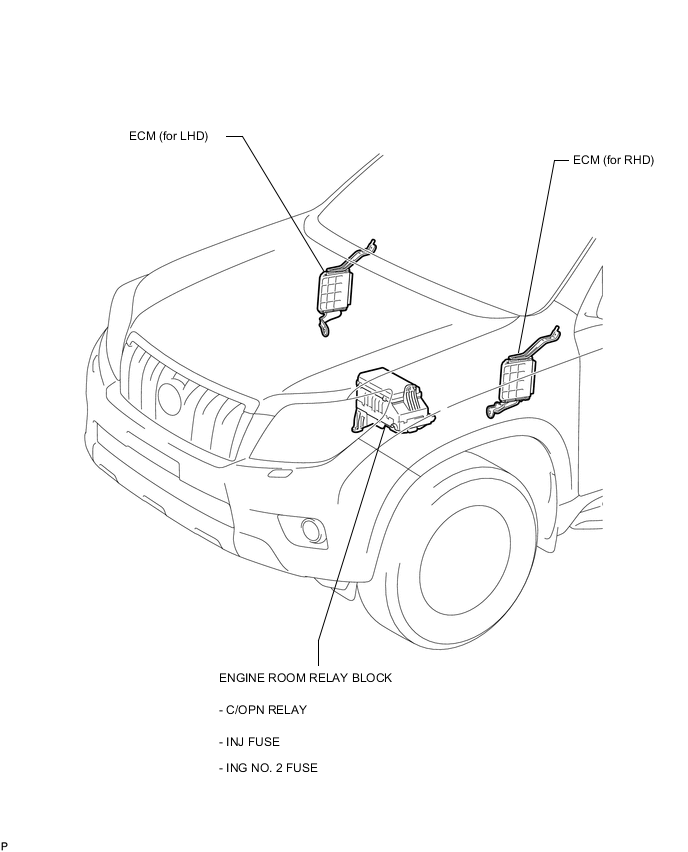

| *2 | MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK) |
| *3 | - IGN FUSE |
| *4 | for RHD: |
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
| *1 | FUEL PRESSURE REGULATOR ASSEMBLY |
| *2 | FUEL INJECTOR |
| *3 | FUEL PRESSURE PULSATION DAMPER ASSEMBLY |
