ECD SYSTEM PARTS LOCATION

ILLUSTRATION

B001HSFE03

ILLUSTRATION

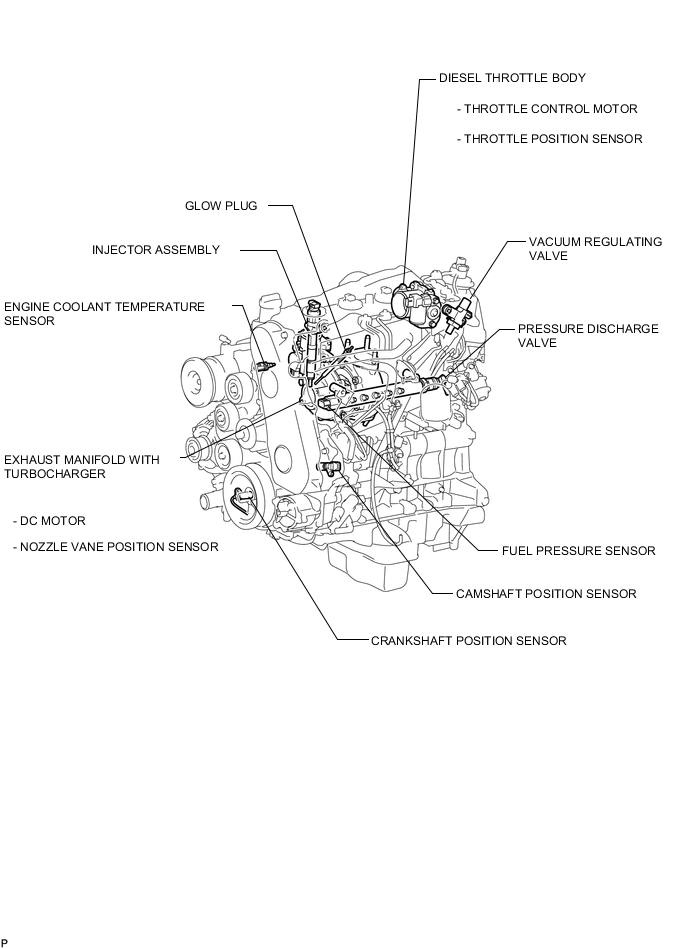

B001HILE02

ILLUSTRATION

B001FXQE03

ILLUSTRATION

B001H0JE07

for LHD
*1	POWER MANAGEMENT CONTROL ECU
*2	COMBINATION METER ASSEMBLY
*3	ACCELERATOR PEDAL SENSOR ASSEMBLY
*4	STOP LIGHT SWITCH

ILLUSTRATION

B001D5HE05

for RHD
*1	COMBINATION METER ASSEMBLY
*2	ACCELERATOR PEDAL SENSOR ASSEMBLY
*3	STOP LIGHT SWITCH
*4	POWER MANAGEMENT CONTROL ECU
