LUGGAGE COMPARTMENT DOOR ADJUSTMENT


  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER


    1. A01I5U8

      Remove the 13 clips and luggage compartment door cover.

  2. REMOVE SPARE WHEEL COVER ASSEMBLY


    1. Remove the spare wheel cover assembly.

  3. REMOVE REAR FLOOR FINISH PLATE


    1. A01I5A2

      Remove the 5 clips.

    2. A01I344

      Disengage the 4 clips and remove the rear floor finish plate.

  4. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH


    1. A01I642

      Remove the 2 clips.

    2. Disengage the clip and remove the luggage compartment door hinge cover LH.

  5. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  6. ADJUST LUGGAGE COMPARTMENT DOOR

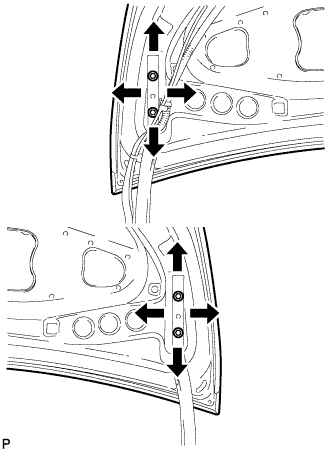

    1. A01I60E

      Loosen the door side hinge bolts to adjust the door horizontally and vertically.

      Torque:
      7.5 N*m  { 76 kgf*cm, 66 in.*lbf }

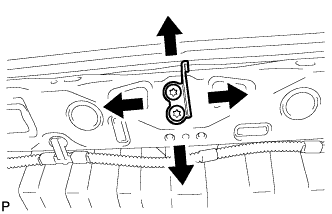

    2. A01I305

      Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

    3. Using a brass bar and a hammer, hit the striker to adjust its position.

    4. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

      Torque:
      23 N*m  { 235 kgf*cm, 17 ft.*lbf }

  7. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH


    1. A01I642

      Engage the clip.

    2. Install the luggage compartment door hinge cover LH with the 2 clips.

  8. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  9. INSTALL REAR FLOOR FINISH PLATE


    1. A01I676

      Engage the 4 clips to install the rear floor finish plate.

    2. Install the 5 clips.

  10. INSTALL SPARE WHEEL COVER ASSEMBLY


    1. Install the spare wheel cover assembly.

  11. INSTALL LUGGAGE COMPARTMENT DOOR COVER


    1. A01I5U8

      Install the luggage compartment door cover with the 13 clips.

  12. INSPECT LUGGAGE COMPARTMENT DOOR

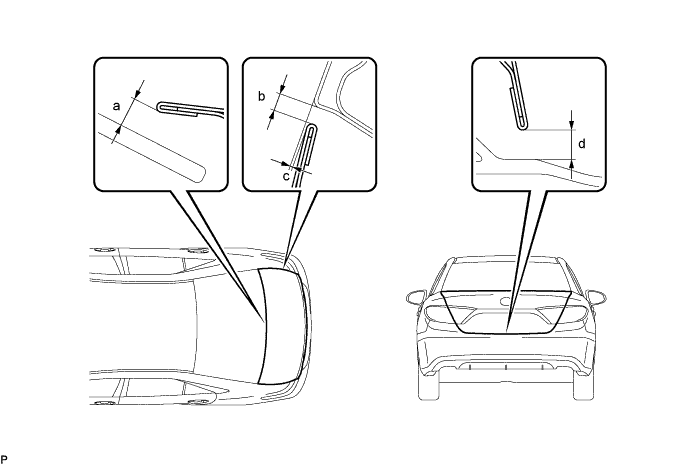

    1. Check that the clearance measurements of areas a through d are within each standard range.

      A01I49LE01
      Standard Clearance
      Area Measurement Area Measurement
      a 6.15 mm (0.242 in.) b 2.0 to 5.0 mm (0.0787 to 0.197 in.)
      c -1.2 to 1.8 mm (-0.0472 to 0.0709 in.) d 6.05 mm (0.238 in.)
