REAR LIGHT ASSEMBLY ON-VEHICLE INSPECTION


  1. INSPECT REAR LIGHT ASSEMBLY LH

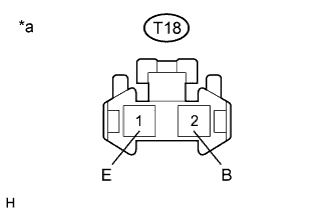

    1. A01HZWRE03
      Text in Illustration
      *a

      Front view of wire harness connector

      (to Rear Light Assembly LH)

      Disconnect the T18 rear light assembly LH connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      T18-2 (B) - T18-1 (E) Ignition switch ON and shift lever not in R Below 1 V
      Ignition switch ON and shift lever in R 11 to 14 V

      If the result is not as specified, repair or replace the wire harness or connector.

  2. INSPECT REAR LIGHT ASSEMBLY RH

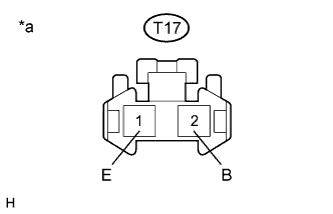

    1. A01HZWRE04
      Text in Illustration
      *a

      Front view of wire harness connector

      (to Rear Light Assembly RH)

      Disconnect the T17 rear light assembly RH connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      T17-2 (B) - T17-1 (E) Ignition switch ON and shift lever not in R Below 1 V
      Ignition switch ON and shift lever in R 11 to 14 V

      If the result is not as specified, repair or replace the wire harness or connector.
