INNER REAR VIEW MIRROR CALIBRATION


  1. SELECT COMPASS DISPLAY MODE

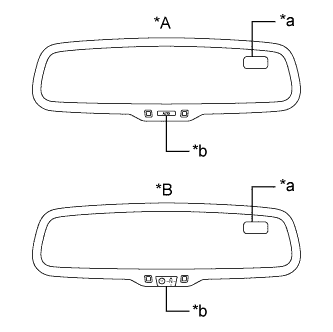

    1. A01HXX0E01
      Text in Illustration
      *A w/ Lane Departure Alert System
      *B w/o Lane Departure Alert System
      *1 Compass Display
      *2 EC switch

      The EC switch allows selection of the compass display.

  2. PERFORM CALIBRATION


    1. Because each vehicle has its own magnetic field, calibration should be performed. The calibration function is used to compensate for the residual magnetism of the vehicle.

  3. WHEN COMPASS IS MAGNETIZED


    1. The compass or vehicle may become magnetized while the vehicle is being shipped. As a result, it is necessary to perform calibration for the compass before the vehicle is delivered to the customer. If calibration cannot be performed successfully (calibration cannot be completed in spite of driving around several times), it may be caused by excessive magnetization of the vehicle. Demagnetize the vehicle using a demagnetizer and perform calibration again.

  4. SET COMPASS

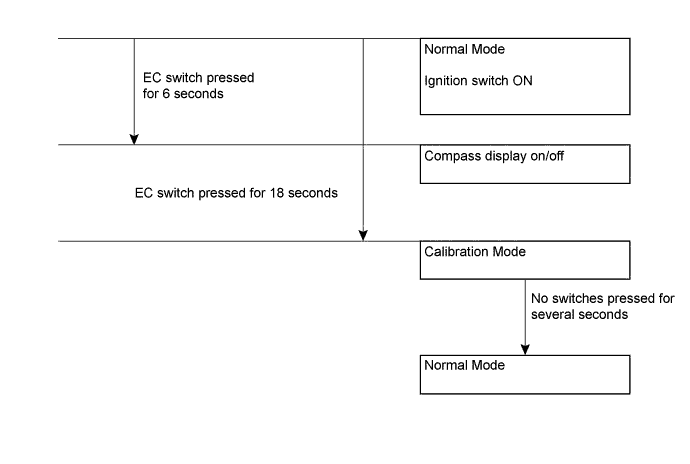

    A01I1QSE62

  5. CALIBRATION MODE


    1. When the compass is in normal mode, pressing the EC switch for 12 seconds will activate calibration mode.

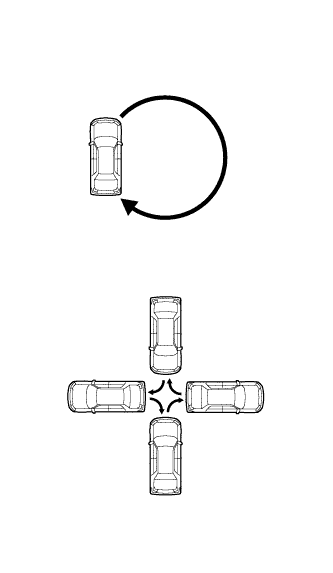

    2. A01HYPQ

      Drive the vehicle in a circle at a speed of 8 km/h (5 mph) or less.

    3. After driving around in a circle 1 to 3 times, the direction (N, NE, E, SE, S, SW, W or NW) will be displayed on the compass display. This indicates that calibration has finished.

      Tech Tips

      After calibration is performed, it is not necessary to repeat the calibration procedure unless the magnetic field of the vehicle changes drastically. If the magnetic field changes drastically, the compass display will indicate "C".
