ДАТЧИК УРОВНЯ ТОПЛИВА В СБОРЕ УСТАНОВКА

Click here

PROCEDURE

1. Click here

   INSTALL FUEL SENDER GAUGE ASSEMBLY



   1.

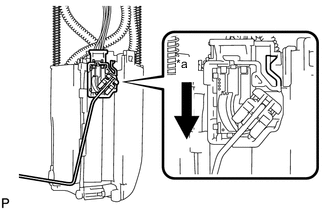

      Set the sender gauge to the fuel sub-tank. Then slide the sender gauge downward to install it.

      Table 1. Text in Illustration

      *a

      Slide

   2. Connect the fuel sender gauge connector.

2. Click here

   INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

   (Click here)
