ДАТЧИК УРОВНЯ ТОПЛИВА В СБОРЕ СНЯТИЕ

PROCEDURE


  1. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

    Click here

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY


    1. A01X7PY

      Disconnect the fuel sender gauge connector.

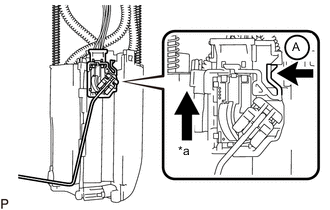

    2. A01X9KME01
      Text in Illustration
      *a Slide

      Press down on the sender gauge claw labeled A. Then slide the sender gauge upward to remove it.
