OUTER MIRROR SWITCH REMOVAL

PROCEDURE

1. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

   Click here

2. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

   Click here

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

   Click here

4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

   Click here

5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)

   Click here

6. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

   Click here

7. REMOVE NO. 1 SWITCH HOLE BASE

   Click here

8. REMOVE OUTER MIRROR SWITCH ASSEMBLY

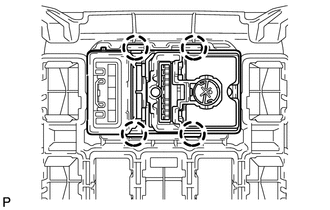

   1. Using a screwdriver, detach the 4 claws and remove the switch.

      Tech Tips

      Tape the screwdriver tip before use.

9. REMOVE RETRACTABLE OUTER MIRROR SWITCH (w/ Retract Mirror)

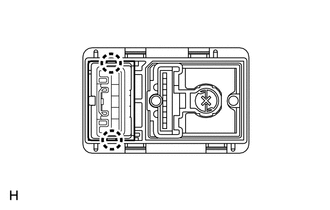

   1. Using a screwdriver, detach the 2 claws and remove the switch.

      Tech Tips

      Tape the screwdriver tip before use.
