INSTRUMENT PANEL SAFETY PAD DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE CENTER HEATER TO REGISTER DUCT

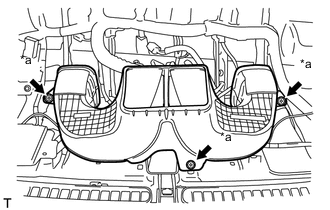

    A01X8FVE03
    Text in Illustration
    *a Screw <C>

    1. Remove the 3 screws <C> and center heater to register duct.

  2. REMOVE REAR NO. 1 AIR DUCT (w/ Rear Air Duct)

    A01X7WL

    1. Remove the 2 screws and rear No. 1 air duct.

  3. REMOVE INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY

    Click here

  4. REMOVE DEFROSTER NOZZLE ASSEMBLY

    A01X4FF

    1. Detach the 11 claws and remove the defroster nozzle assembly.

  5. REMOVE NO. 1 SIDE DEFROSTER NOZZLE

    A01X2DP

    1. Detach the 2 claws and remove the No. 1 side defroster nozzle.

  6. REMOVE NO. 2 SIDE DEFROSTER NOZZLE

    A01WZWH

    1. Detach the 2 claws and remove the No. 2 side defroster nozzle.

  7. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)

    Click here

  8. REMOVE ANTENNA CORD SUB-ASSEMBLY


    1. w/ Navigation System:

      Click here

    2. w/o Navigation System:

      Click here

  9. REMOVE NO. 2 INSTRUMENT PANEL WIRE


    1. Detach the clamps and remove the No. 2 instrument panel wire.

      A01XA8M

  10. REMOVE GLOVE BOX LIGHT ASSEMBLY

    Click here

  11. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    A01X083

    1. Remove the 2 screws.

    2. tach the 2 claws and remove the glove compartment door sub-assembly.

  12. REMOVE GLOVE COMPARTMENT PLATE

    A01X8YS

    1. Detach the 2 claws and remove the glove compartment plate.

  13. REMOVE LOWER INSTRUMENT COVER LH

    A01X9DX

    1. Detach the 2 claws and 3 guides and remove the lower instrument cover LH.

  14. REMOVE CONSOLE COMPARTMENT DOOR CUSHION

    Tech Tips

    Use the same procedure for both console compartment door cushions.


    1. A01XA3J

      Remove the console compartment door cushion.

  15. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY

    A01X5UY

    1. Remove the 2 screws and glove compartment door lock assembly.

  16. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER

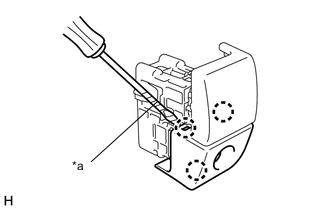

    A01WZXTE01
    Text in Illustration
    *a Protective Tape

    1. Using a screwdriver, detach the 3 claws and remove the glove compartment door lock cover.

      Tech Tips

      Tape the screwdriver tip before use.

  17. REMOVE GLOVE COMPARTMENT DOOR LOCK PIN

    A01X11E

    1. Remove the glove compartment door lock pin.

  18. REMOVE METER HOOD SPACER

    A01X6OG

    1. Detach the 8 claws and remove the meter hood spacer.

  19. REMOVE INSTRUMENT PANEL HOLE COVER

    A01X6S5

    1. Remove the 2 screws and instrument panel hole cover.
