REAR NO. 1 SEAT ASSEMBLY(for 60/40 Split Seat Type 60 Side) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE SEAT ADJUSTER BOLT COVER

    B0010XN

    1. Using a screwdriver, detach the 2 claws and remove the cover.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

    B001194

    1. Remove the screw and release handle.

  3. REMOVE REAR NO. 1 SEAT RECLINING COVER LH

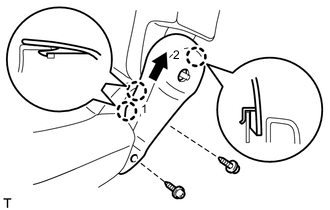

    B00116BE01

    1. Remove the 2 screws.

    2. Detach the 3 claws in the order shown in the illustration, and then remove the cover.

  4. REMOVE REAR NO. 1 SEAT RECLINING COVER RH

    B00116Q

    1. Remove the 2 screws.

    2. Detach the 4 claws and remove the cover.

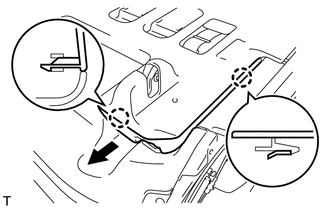

  5. REMOVE UPPER SEAT TRACK RAIL COVER LH

    B0010WA

    1. Using a screwdriver, detach the 2 claws and remove the cover.

      Tech Tips

      Tape the screwdriver tip before use.

  6. REMOVE UPPER SEAT TRACK RAIL COVER RH

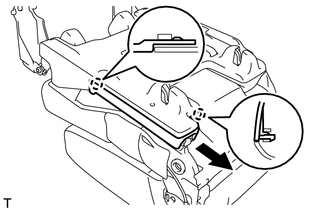

    B0010ZF

    1. Using a screwdriver, detach the 2 claws and remove the cover.

      Tech Tips

      Tape the screwdriver tip before use.

  7. REMOVE NO. 1 SEAT CUSHION COVER

    B00117G

    1. Detach the 4 claws and remove the 2 covers.

  8. REMOVE REAR NO. 2 SEAT LEG SIDE COVER


    1. B001158

      Remove the 4 screws and detach the 4 claws.

    2. B001101

      Remove the bolt that is securing the fold seat stopper band and remove the seat leg side cover together with the fold seat stopper band.

  9. REMOVE FOLD SEAT STOPPER BAND ASSEMBLY


    1. Remove the fold seat stopper band from the seat leg side cover.

  10. REMOVE REAR SEAT SIDE HINGE FEMALE COVER

    B00111F

    1. Using a screwdriver, detach the 6 claws and remove the 2 covers.

      Tech Tips

      Tape the screwdriver tip before use.

  11. REMOVE REAR SEAT SIDE HINGE MALE COVER LH

    B00117D

    1. Detach the clip and remove the cover.

  12. REMOVE REAR SEAT SIDE HINGE MALE COVER RH


    1. Detach the clip and remove the cover.

  13. REMOVE REAR NO. 2 SEAT PROTECTOR


    1. B0010VF

      w/ Rear Seat Side Airbag:

      Detach the claw and remove the wire harness connector.

    2. w/ Seat Heater System:

      Detach the claw and remove the wire harness connector.

    3. B001107

      Using a clip remover, remove the clip.

    4. Detach the claw and remove the seat protector from the seat hinge.

    5. Detach the 2 claws, open the protector and remove wire harness.

  14. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH


    1. B00110W

      w/ Rear Seat Side Airbag:

      Detach the wire harness clamp.

    2. w/ Seat Heater System:

      Detach the wire harness clamp.

    3. Remove the 2 nuts and hinge.

    4. B00112S

      Detach the cable clamp and disconnect the cable.

  15. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH

    B0010X2

    1. Remove the 2 nuts and hinge.

  16. REMOVE SEAT BELT ANCHOR COVER CAP

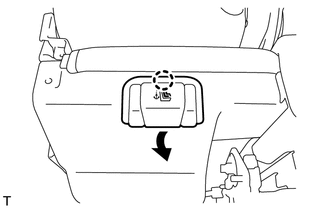

    1. B00117B

      Detach the claw and open the cap.

    2. B001174

      Remove the screw and anchor cover cap.

  17. REMOVE REAR SEATBACK STAY COVER LH

    B0010W0

    1. Remove the screw.

    2. Detach the 2 claws and remove the cover.

  18. REMOVE REAR UNDER SIDE COVER LH


    1. B00114P

      Detach the 10 claws.

    2. B00115K

      Remove the 5 screws.

    3. Detach the 2 clips and 2 claws, and remove the cover.

  19. REMOVE NO. 1 SEAT CUSHION PLATE


    1. B00117H

      Detach the 3 claws and remove the seat cushion plate.

  20. REMOVE REAR SEAT CUSHION COVER RH

    B001192

    1. Remove the 4 screws.

    2. Detach the 2 claws and remove the cover.

  21. REMOVE REAR SEAT UNDER TRAY COVER LH

    B0010UA

    1. Remove the 2 screws.

    2. Detach the 4 claws and remove the cover.

  22. REMOVE REAR SEAT TRACK HANDLE SUB-ASSEMBLY


    1. B001142

      Remove the 2 screws and seat track handle.

    2. B0010WV

      Detach the 2 cable clamps and disconnect the 2 cables.

    3. B00110Y

      Detach the cable clamp and disconnect the cable.

  23. REMOVE FOLD SEAT LOCK CONTROL CABLE SUB-ASSEMBLY

  24. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    Click here

  25. DISCONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Click here

  26. REMOVE SEAT CUSHION COVER WITH PAD


    1. w/ Rear Seat Side Airbag:


      1. Detach the side airbag wire harness clamps.

      2. Remove the side airbag wire harness through the hole in the seat cushion.

    2. w/ Seat Heater System:


      1. B0010WZ

        Disconnect the 2 seat heater connectors.

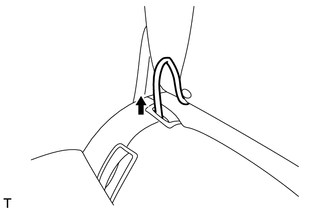

      2. B001196

        Remove the seatback heater wire harness through the hole in the seat cushion.

    3. Remove the seat cushion cover with pad.

  27. REMOVE REAR SEPARATE TYPE SEAT CUSHION COVER


    1. B0010W6E01
      *1 Fastening Tape

      Detach the 3 pieces of fastening tape.

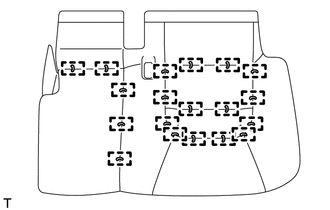

    2. B00117Z

      Remove the hog rings and cover.

  28. REMOVE REAR SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    B00119T

    1. Cut off the tack pins which fasten the seat heater to the seat cushion cover, and then remove the seat cushion heater from the seat cushion cover.

  29. REMOVE REAR SEATBACK COVER

    B001189E01
    *1 Protective Tape

    1. Using a screwdriver, detach the 4 claws and remove the cover.

      Tech Tips

      Tape the screwdriver tip before use.

  30. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH

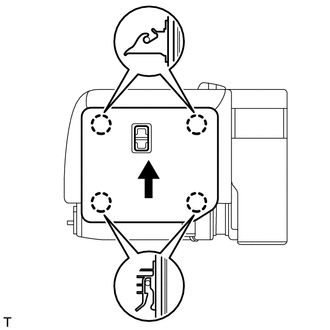

    B0010TW

    1. w/ Center Armrest:


      1. Detach the 2 claws on the top of the board.

      2. Pull up the board to detach the 2 claws on the bottom of the board and remove it.

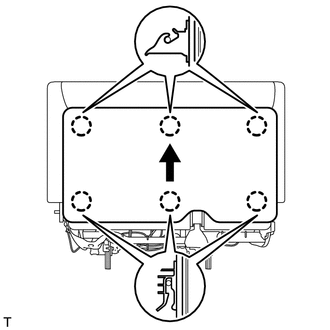

    2. B0010VX

      w/o Center Armrest:


      1. Detach the 3 claws on the top of the board.

      2. Pull up the board to detach the 3 claws on the bottom of the board and remove it.

  31. REMOVE REAR SEAT HEADREST ASSEMBLY

  32. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY

    B00117N

    1. w/ Center Armrest:

      Detach the 4 claws and remove the 2 supports.

    2. B00115Z

      w/o Center Armrest:

      Detach the 8 claws and remove the 4 supports.

  33. REMOVE SHOULDER BELT ANCHOR COVER

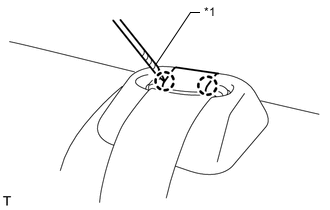

    B0010TGE01
    *1 Protective Tape

    1. Using a screwdriver, detach the 2 claws and remove the cover.

      Tech Tips

      Tape the screwdriver tip before use.

  34. REMOVE REAR SEAT BELT HOLE COVER LH

    B0010YX

    1. Remove the screw.

    2. Detach the 4 claws and remove the cover.

  35. REMOVE SEATBACK COVER WITH PAD

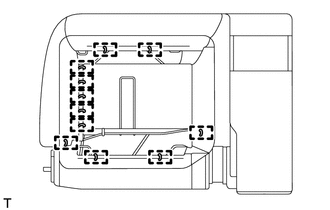

    1. B00119G

      w/ Center Armrest:

      Remove the hog rings.

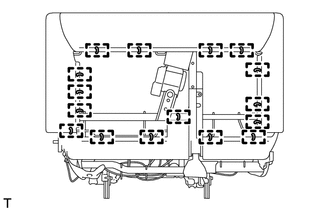

    2. B0010TD

      w/o Center Armrest:

      Remove the hog rings.

    3. w/ Rear Seat Side Airbag:


      1. B0010XC

        Remove the cap nut and seatback cover bracket from the seat frame.

      2. Remove the side airbag wire harness through the hole in the seatback.

    4. w/ Seat Heater System:


      1. B00112CE01
        *1 Cable Tie

        Cut the cable tie and disconnect the seatback heater wire harness.

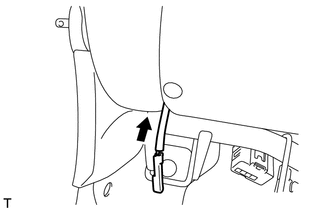

      2. B00113U

        Remove the seatback heater wire harness through the hole in the seatback.

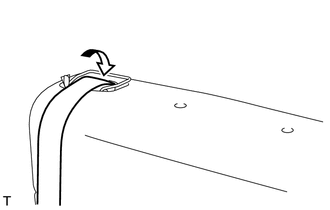

    5. B0010SQ

      w/ Center Armrest:

      Pull the seat belt into the inside of the seat.

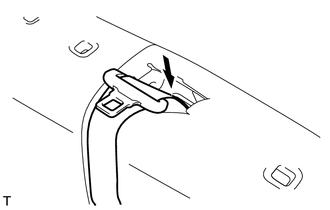

    6. B00110S

      w/o Center Armrest:

      Pull the seat belt into the inside of the seat.

    7. Remove the seatback cover with pad.

  36. REMOVE REAR SEPARATE TYPE SEATBACK COVER

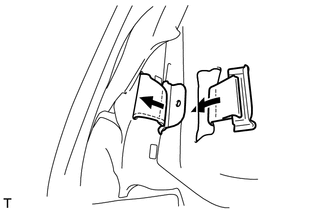

    1. B001181

      w/ Rear Seat Side Airbag:

      Disconnect the seatback cover bracket from the seatback pad.

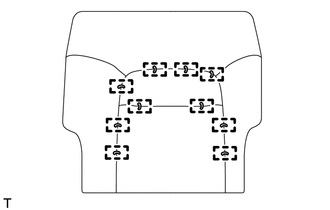

    2. B0011AR

      w/ Center Armrest:

      Remove the hog rings and rear seatback cover.

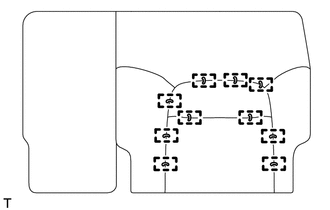

    3. B00111A

      w/o Center Armrest:

      Remove the hog rings and rear seatback cover.

  37. REMOVE REAR SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    B0010TA

    1. Cut off the tack pins which fasten the seatback heater to the seatback cover, and then remove the seatback heater from the seatback cover.

  38. REMOVE SEATBACK STOPPER PLATE


    1. A01XBD7

      w/ Center Armrest:


      1. Using a T40 "TORX" socket, remove the 2 bolts.

      2. Remove the bolt and stopper plate.

      3. Remove the bush from the stopper plate.

    2. B00118D

      w/o Center Armrest:


      1. Using a T40 "TORX" socket, remove the 2 bolts.

      2. Remove the bolt and stopper plate.

      3. Remove the bush from the stopper plate.

  39. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY (w/ Center Armrest)

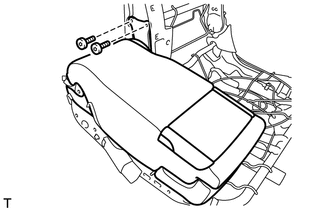

    A01X2JE

    1. Using a T40 "TORX" socket, remove the 2 bolts and center seat armrest.

  40. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY (w/ Center Armrest)

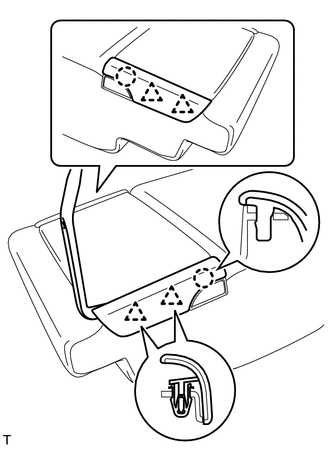

  41. REMOVE NO. 1 SEAT ARMREST PLATE (w/ Center Armrest)

    A01X5QG

    1. Using a moulding remover, detach the 4 clips and 2 claws, and then remove the 2 armrest plates.

  42. REMOVE CUP HOLDER ASSEMBLY (w/ Center Armrest)


    1. A01XAJ2

      Remove the 2 screws.

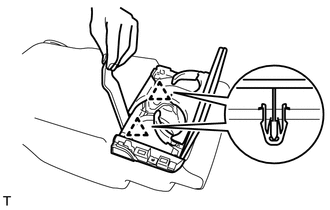

    2. A01X7OU

      Using a moulding remover, detach the 2 clips and remove the cup holder.

  43. REMOVE REAR SEAT RECLINING COVER LH

    B0010XJ

    1. Remove the screw.

    2. Detach the claw and remove the cover.

  44. REMOVE REAR NO. 2 SEAT RECLINING COVER LH

    B00110C

    1. Remove the screw.

    2. Detach the clamp and remove the cover.

  45. REMOVE REAR NO. 1 SEAT RECLINING COVER RH

    B0010UD

    1. Remove the screw.

    2. Detach the claw and remove the cover.

  46. REMOVE REAR SEATBACK HINGE COVER LH

    B00118P

    1. Remove the screw.

    2. Detach the claw and remove the cover.

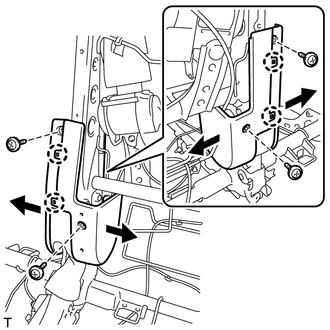

  47. REMOVE REAR LOWER SEATBACK COVER SUB-ASSEMBLY LH

    B0011AH

    1. Remove the 4 screws.

    2. Detach the 4 claws and remove the cover.

  48. REMOVE REAR SEAT SHOULDER BELT HOLE COVER LH

    Click here

  49. REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Click here

  50. REMOVE RECLINING ADJUSTING CABLE ASSEMBLY LH

    B001109

    1. Detach the 2 cable clamps and disconnect the cable.

    2. Detach the clamp and remove the adjusting cable.

  51. REMOVE NO. 2 FOLD SEAT LOCK CONTROL CABLE ASSEMBLY

    B00118E

    1. Detach the 2 cable clamps and disconnect the cable.

    2. Detach the clamp and remove the lock control cable.

  52. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH

    B00116N

    1. LH Side:

      Using a T40 "TORX" socket, remove the 2 bolts.

    2. RH Side:

      Using a T55 "TORX" socket, remove the 2 bolts.

    3. Remove the seatback frame sub-assembly.

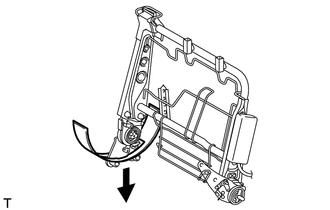

    4. B0010UC

      Remove the lower seatback cover.

  53. REMOVE FOLD SEAT LOCK CONTROL CABLE SUB-ASSEMBLY

    B001136

    1. Detach the 2 cable clamps and disconnect the 2 cables.

    2. Remove the 2 fold seat lock cables.

  54. REMOVE REAR NO. 1 SEAT LOCK CABLE ASSEMBLY


    1. B001120

      Remove the 2 nuts and lower seat track bracket.

    2. B0010ZVE04
      *1 Cable Tie

      Cut the cable tie and disconnect the cable.

    3. Detach the 3 cable clamps and disconnect the 3 cables.

    4. Detach the clamp and remove the seat lock cable.

  55. REMOVE REAR SEAT CUSHION HOLDER BRACKET LH (w/ Seat Heater System)

    B00112T

    1. Disconnect the seat wire connector.

    2. Remove the 2 screws and holder bracket.

  56. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH (w/ Seat Heater System)

    B00117U

    1. Detach the 2 claws and remove the seat heater control.

  57. REMOVE REAR SEAT INNER BELT ASSEMBLY

    Click here

  58. REMOVE NO. 1 SEAT LEG ASSEMBLY LH

    B00115D

    1. Using a T40 "TORX" socket, remove the 2 bolts and seat leg assembly.

  59. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH

    B00114C

    1. Using a T40 "TORX" socket, remove the bolt.

    2. Remove the 5 nuts and seat cushion frame.

  60. REMOVE REAR SEAT LOCK CONTROL LEVER LH

    B0010Z0

    1. Remove the bolt and lock control lever.
