REAR NO. 1 SEAT ASSEMBLY(for Bench Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE


  1. INSTALL REAR SEAT CUSHION HOLDER BRACKET

    Tech Tips

    Use the same procedure to install the rear seat cushion holder bracket on the other side.


    1. Install the rear seat cushion holder bracket with the 2 bolts.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

  2. INSTALL REAR SEAT CUSHION LOCK STRIKER SUB-ASSEMBLY

    Tech Tips

    Use the same procedure to install the rear seat cushion lock striker sub-assembly on the other side.


    1. Install the rear seat cushion lock striker with the 2 bolts.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

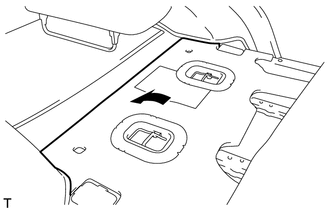

    2. A01WZ7H

      Return the rear floor silencer to its original position.

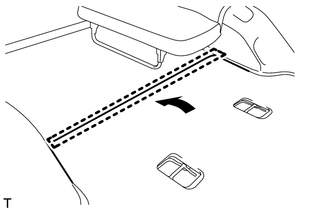

    3. A01X5C5

      Return the front floor carpet to its original position and attach the fastener.

  3. INSTALL REAR SEAT NO. 2 PROTECTOR

    Tech Tips

    Use the same procedure to install the rear seat No. 2 protector on the other side.


    1. Attach the 4 claws to install the rear seat No. 2 protector to the rear seat cushion lock striker sub-assembly.

  4. INSTALL REAR DOOR SCUFF PLATE LH

    Click here

  5. INSTALL REAR DOOR SCUFF PLATE RH

    Click here

  6. INSTALL REAR STEP COVER

    Click here

  7. INSTALL REAR NO. 1 SEAT ASSEMBLY


    1. Place the rear No. 1 seat assembly in the cabin.

      Note

      Be careful not to damage the vehicle body.

    2. Temporarily install the rear No. 1 seat assembly with the 4 bolts.

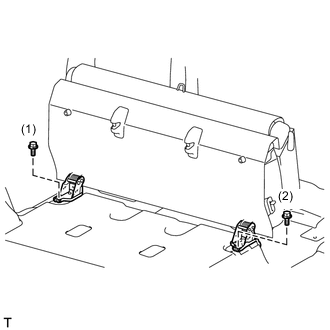

    3. A01WZ63E02

      Tighten the 2 bolts in the order shown in the illustration.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

    4. Return the rear No. 1 seat assembly to its original position.

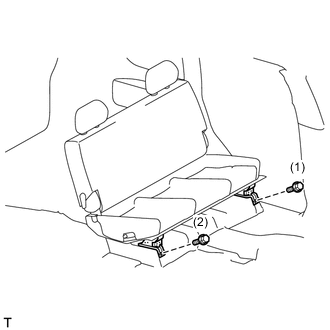

    5. A01X8LTE02

      Tighten the 2 bolts in the order shown in the illustration.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

  8. INSTALL REAR SEAT NO. 2 CUSHION HINGE COVER


    1. Operate the reclining remote control lever knob and fold down the rear No. 1 seat assembly.

    2. Attach the 3 claws to install the rear seat No. 2 cushion hinge cover.

  9. INSTALL REAR SEAT NO. 1 CUSHION HINGE COVER


    1. Attach the 3 claws to install the rear seat No. 1 cushion hinge cover.

  10. INSTALL REAR SEAT NO. 4 CUSHION HINGE COVER


    1. Return the rear No. 1 seat assembly to its original position.

    2. Attach the 6 claws to install the rear seat No. 4 cushion hinge cover.

  11. INSTALL REAR SEAT NO. 3 CUSHION HINGE COVER


    1. Attach the 6 claws to install the rear seat No. 3 cushion hinge cover.
