DOOR CONTROL BATTERY(for RHD) REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. REMOVE INSTRUMENT SIDE PANEL RH

    Click here

  4. REMOVE FRONT DOOR SCUFF PLATE RH

    Click here

  5. REMOVE COWL SIDE TRIM BOARD RH

    Click here

  6. REMOVE NO. 1 INSTRUMENT PANEL FINISH CUSHION

    Click here

  7. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH

    Click here

  8. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Click here

  9. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Click here

  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)

    Click here

  11. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Click here

  12. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

  13. REMOVE DOOR CONTROL BATTERY

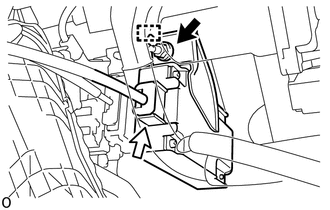

    1. B001Y3A

      Remove the nut.

      Text in Illustration
      B001XPG Nut
      B001WGT Connector

    2. Detach the guide and remove the door control battery.

    3. Disconnect the connector.
