STEERING CONTROL ECU(for LHD)

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

Note

After the engine switch is turned off, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the engine switch off, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION

REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH

REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

REMOVE INSTRUMENT SIDE PANEL LH

REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

REMOVE FRONT DOOR SCUFF PLATE LH

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)

REMOVE COWL SIDE TRIM BOARD LH

REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

REMOVE NO. 1 SWITCH HOLE BASE

REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (w/ Driver Side Knee Airbag)

REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (w/o Driver Side Knee Airbag)

REMOVE STEERING CONTROL ECU WITH JUNCTION BLOCK

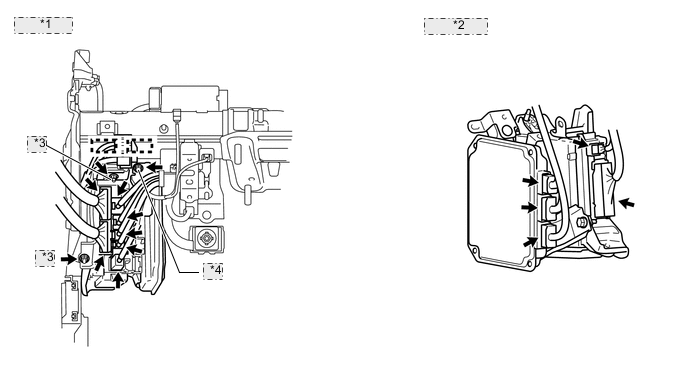

Rear Side:
1. Disconnect the 7 connectors.
2. Detach the 2 clamps.
3. Remove the bolt and 2 nuts.
Front Side:
1. Disconnect the 5 connectors.
Remove the steering control ECU with junction block.

REMOVE STEERING CONTROL ECU

*1 Nut

*2 Bolt

Remove the bolt, nut and steering control ECU from the junction block.

STEERING CONTROL ECU(for LHD) REMOVAL
