VALVE BODY ASSEMBLY REASSEMBLY

PROCEDURE


  1. INSTALL SHIFT SOLENOID VALVE SLT


    1. B001YVP

      Install the shift solenoid valve SLT and straight pin to the transmission valve body assembly.

  2. INSTALL SHIFT SOLENOID VALVE SL2


    1. B001WU7

      Install the shift solenoid valve SL2 and straight pin to the transmission valve body assembly.

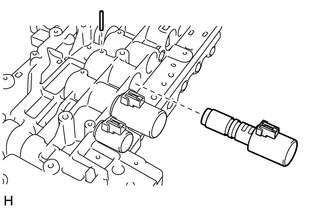

  3. INSTALL SHIFT SOLENOID VALVE SL1


    1. B001ZQ1

      Install the shift solenoid valve SL1 and straight pin to the transmission valve body assembly.

  4. INSTALL SHIFT SOLENOID VALVE SL3


    1. B001W38

      Install the shift solenoid valve SL3 and straight pin to the transmission valve body assembly.

  5. INSTALL SHIFT SOLENOID VALVE SLU


    1. B001ZPJ

      Install the shift solenoid valve SLU and straight pin to the transmission valve body assembly.

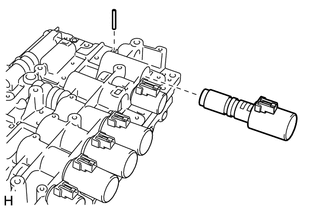

  6. INSTALL SHIFT SOLENOID VALVE SL4


    1. B001X1F

      Install the shift solenoid valve SL4 and straight pin to the transmission valve body assembly.

  7. INSTALL SHIFT SOLENOID VALVE SL


    1. B001WRU

      Install the shift solenoid valve SL to the transmission valve body assembly with the bolt.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }

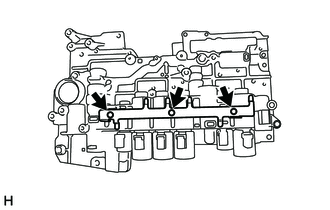

  8. INSTALL SOLENOID LOCK PLATE


    1. B001YSU

      Install the solenoid lock plate to the transmission valve body assembly with the 3 bolts.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }
