OIL COOLER REMOVAL

PROCEDURE


  1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    Click here

  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    Click here

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  4. REMOVE NO. 2 ENGINE UNDER COVER

    Click here

  5. REMOVE HEADLIGHT ASSEMBLY RH

    for Standard: Click here

    for HID Headlight: Click here

  6. REMOVE FRONT FENDER APRON TRIM PACKING A

    Click here

  7. REMOVE FRONT FENDER APRON TRIM PACKING C

    Click here

  8. DISCONNECT TRANSMISSION OIL COOLER HOSE

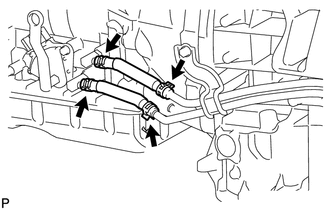

    A01X3KY

    1. Disconnect the 2 transmission oil cooler hoses.

  9. DISCONNECT INLET NO. 1 OIL COOLER HOSE AND OUTLET NO. 1 OIL COOLER HOSE

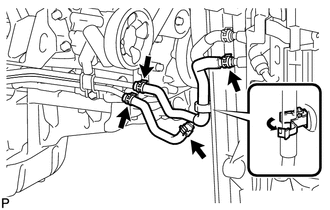

    A01X44H

    1. Detach the claw to open the flexible hose clamp.

    2. Disconnect the inlet and outlet oil cooler hoses.

  10. DISCONNECT INLET NO. 2 OIL COOLER HOSE AND INLET NO. 3 OIL COOLER HOSE

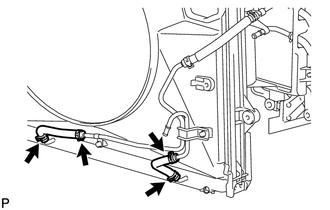

    A01X3B1

    1. Disconnect the 2 inlet oil cooler hoses.

  11. DISCONNECT INLET NO. 4 OIL COOLER HOSE

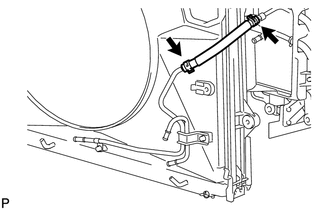

    A01X8T1

  12. REMOVE OIL COOLER TUBE

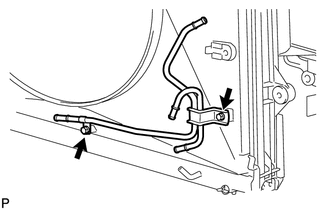

    A01XBDB

    1. Remove the 2 bolts and oil cooler tube.

  13. REMOVE TRANSMISSION OIL COOLER AIR DUCT

    A01X1H9

    1. Remove the 4 bolts and transmission oil cooler air duct.

  14. REMOVE OIL COOLER ASSEMBLY

    A01XB6M

    1. Remove the 4 bolts and oil cooler.

    2. B001VPV

      Remove the 5 bolts and transmission oil cooler air duct.

    3. B001WW6

      Disconnect the oil cooler inlet hose and outlet hose and remove the tube.
