CRUISE CONTROL MAIN SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for LHD and RHD vehicles.

  • The procedures listed below are for LHD vehicles.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. REMOVE LOWER NO. 3 STEERING WHEEL COVER

    Click here

  4. REMOVE LOWER NO. 2 STEERING WHEEL COVER

    Click here

  5. REMOVE STEERING PAD

    Click here

  6. REMOVE CRUISE CONTROL MAIN SWITCH


    1. A01XB9M

      Disconnect the connector and clamp.

    2. A01X7OD

      Remove the 2 screws.

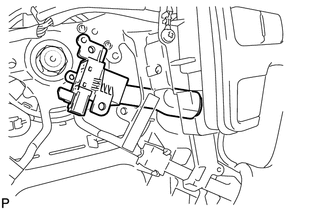

    3. A01X6P7

      Remove the switch.
