CAN COMMUNICATION SYSTEM(for RHD with Central Gateway ECU) SYSTEM DIAGRAM

Click here
Click here
Click here
  1. A01X9PBE02

    SYSTEM DIAGRAM

    No. ECU/Sensor name
    1 Central Gateway ECU
    2 DLC3
    3 ECM
    4 4WD Control ECU
    5 Tire Pressure Warning ECU*1
    6 Airbag Sensor Assembly
    7 Air Conditioning Amplifier Assembly
    8 Headlight Leveling ECU Assembly
    9 Master Cylinder Solenoid (Skid Control ECU)
    10 Steering Control ECU*2
    11 Certification ECU (Smart Key ECU Assembly)*3
    12 Power Steering ECU Assembly*4
    13 Spiral with Sensor Cable Sub-assembly (Steering Angle Sensor)
    14 Main Body ECU (Multiplex Network Body ECU)
    15 Combination Meter Assembly
    16 Outer Mirror Control ECU Assembly RH*5
    17 Outer Mirror Control ECU Assembly LH*5
    18 Power Seat Switch Assembly*5
    19 Multiplex Tilt and Telescopic ECU*6
    20 Power Back Door Unit Assembly (Power Back Door ECU)*7
    21 No. 2 Main Body ECU*8
    22 No. 3 CAN Junction Terminal
    23 Multi-media Module Receiver Assembly*9
    24 Option Connector*10
    25 Bus Buffer ECU*11
    26 No. 2 CAN Junction Terminal
    27 Clearance Warning ECU Assembly*12
    28 Forward Recognition Camera*14
    29 Parking Assist ECU*13
    30 Inner Rear View Mirror Assembly*15, *16
    31 Suspension Control ECU*17
    32 Driving Support ECU Assembly*14
    33 Blind Spot Monitor Sensor LH*18
    34 Millimeter Wave Radar Sensor Assembly*14
    35 No. 1 CAN Junction Terminal

    • *1: w/ Tire Pressure Warning System

    • *2: w/ Variable Gear Ratio Steering System

    • *3: w/ Entry and Start System

    • *4: w/ Variable Flow Control Solenoid Valve

    • *5: w/ Memory

    • *6: w/ Power Tilt and Power Telescopic Steering Column System

    • *7: w/ Power Back Door System

    • *8: w/ Tail Gate Closer System

    • *9: for Multi-media Module Receiver Type

    • *10: w/ Option Connector

    • *11: w/ Bus Buffer ECU

    • *12: w/ TOYOTA Parking Assist-sensor System

    • *13: w/ Multi-terrain Monitor System

    • *14: w/ Pre-crash Safety System

    • *15: w/o Pre-crash Safety System

    • *16: w/ Automatic High Beam System

    • *17: w/ Active Height Control Suspension

    • *18: w/ Blind Spot Monitor System

    Tip:

    • The main body ECU (multiplex network body ECU) functions as a gateway between the bus 2 and sub bus 1.

    • The central gateway ECU functions as a gateway between the V bus, bus 2, bus 3 and bus 5.

    • The driving support ECU assembly functions as a gateway between the bus 5 and local bus.

    • Refer to the following bus wiring diagrams for details.

  2. A01XBMEE07

    V BUS

  3. A01X6G2E02

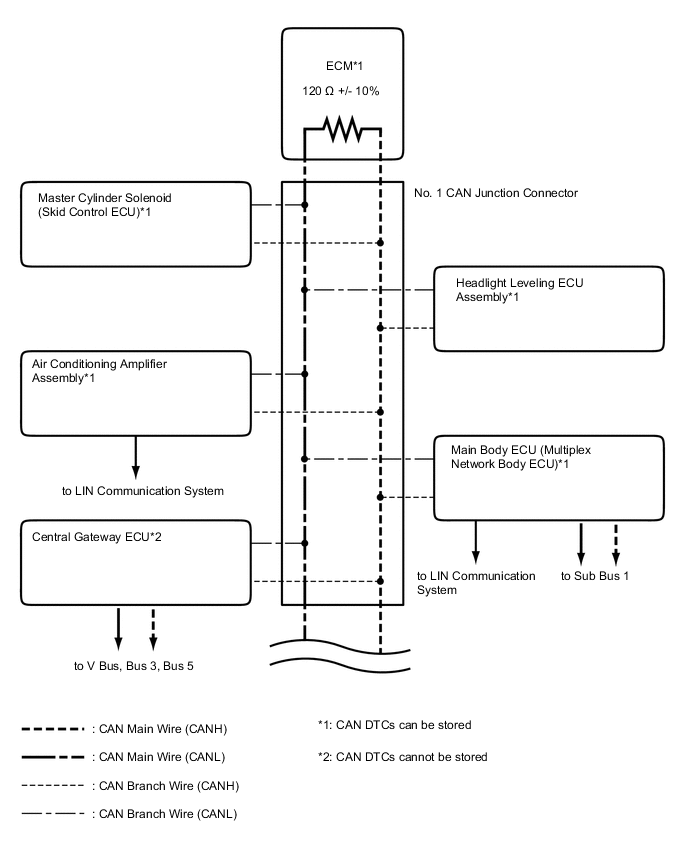

    A01WZ56E02

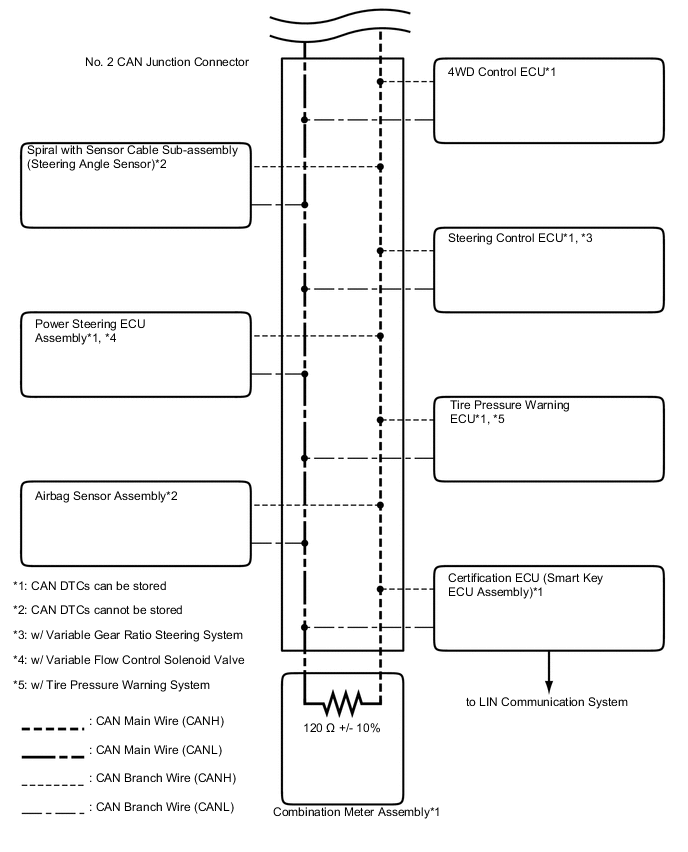

    BUS 2

  4. A01X6E5E01

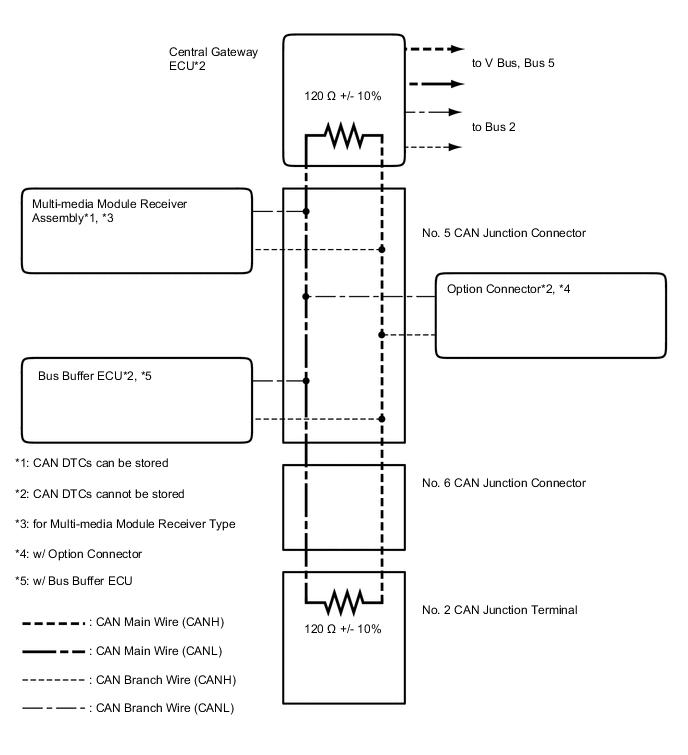

    BUS 3

  5. A01XAE0E02
    A01X2D0E03

    BUS 5

  6. A01X7CGE01

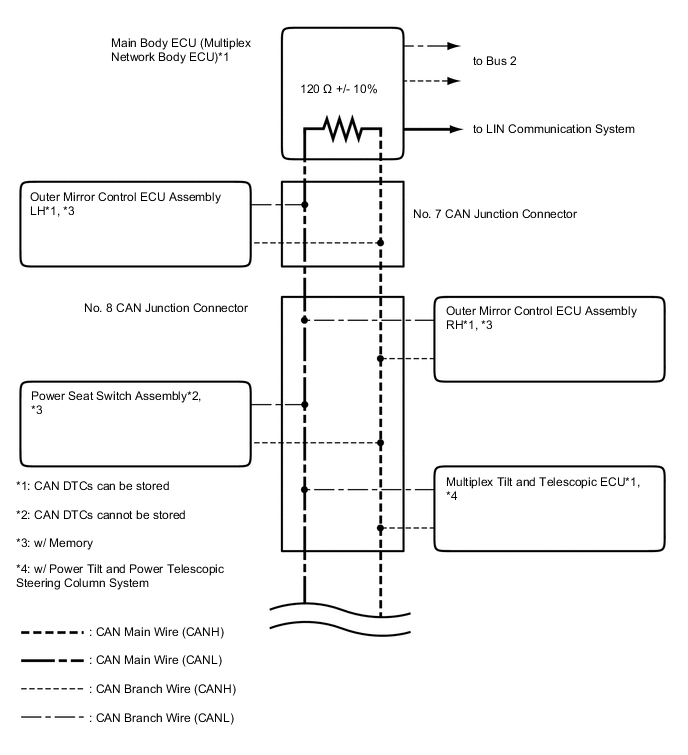

    A01X4URE01

    SUB BUS 1

  7. A01X8EQE05

    LOCAL BUS (w/ Pre-crash Safety System)
