CAN COMMUNICATION SYSTEM(for RHD with Central Gateway ECU) PARTS LOCATION

ILLUSTRATION

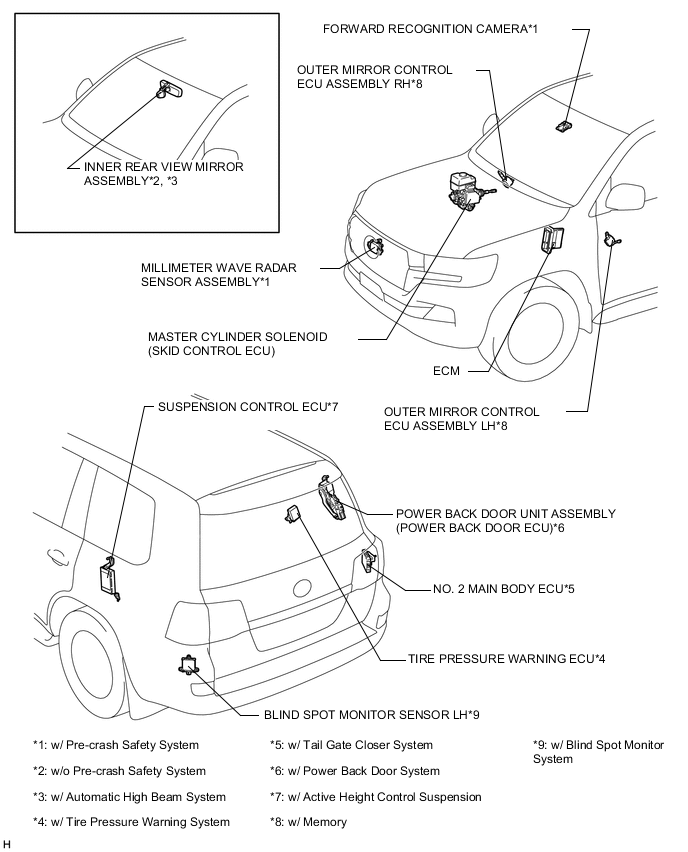

A01X7YDE03

ILLUSTRATION

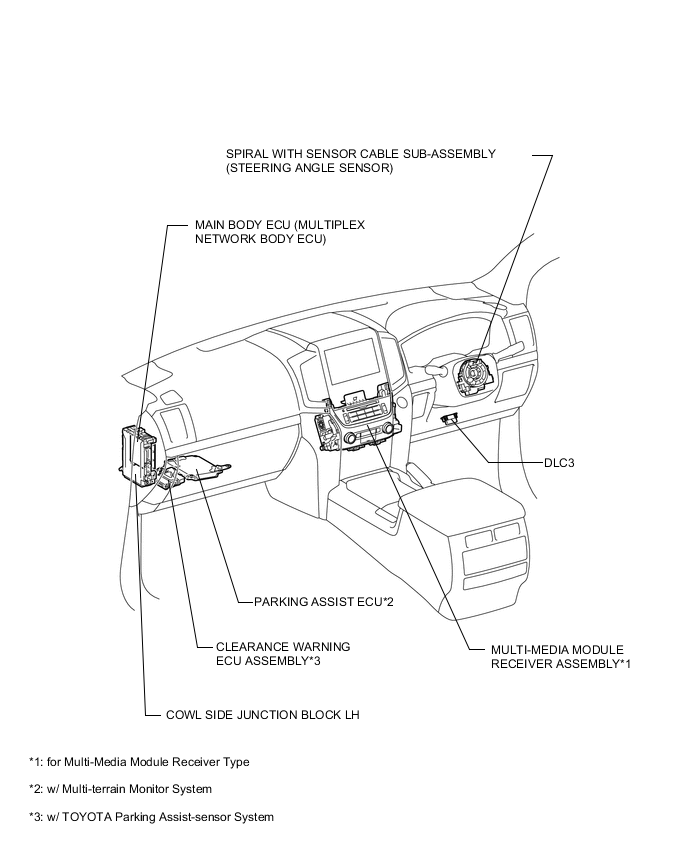

A01XC0EE02

ILLUSTRATION

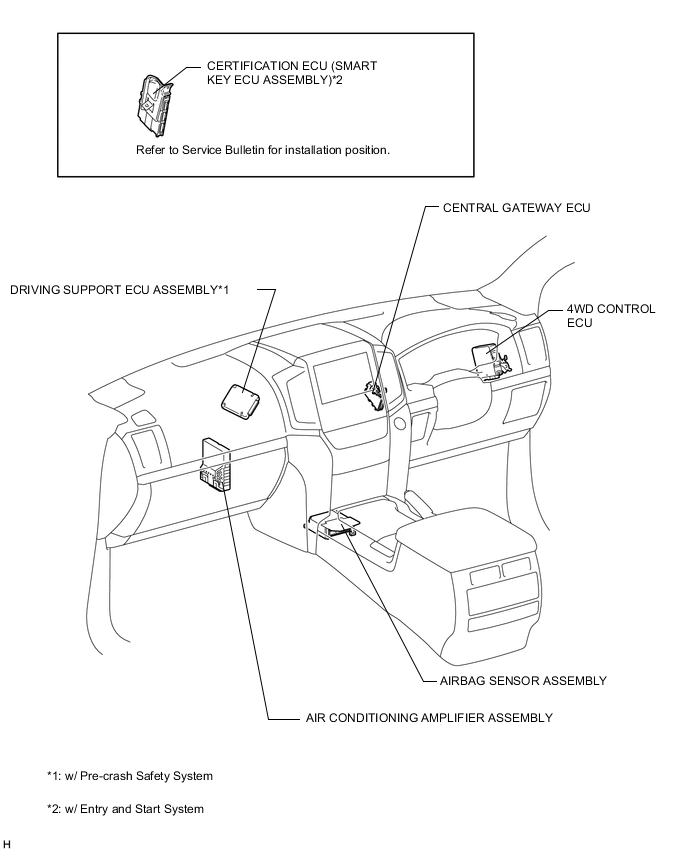

A01X4B2E01

ILLUSTRATION

A01WYZAE01

ILLUSTRATION

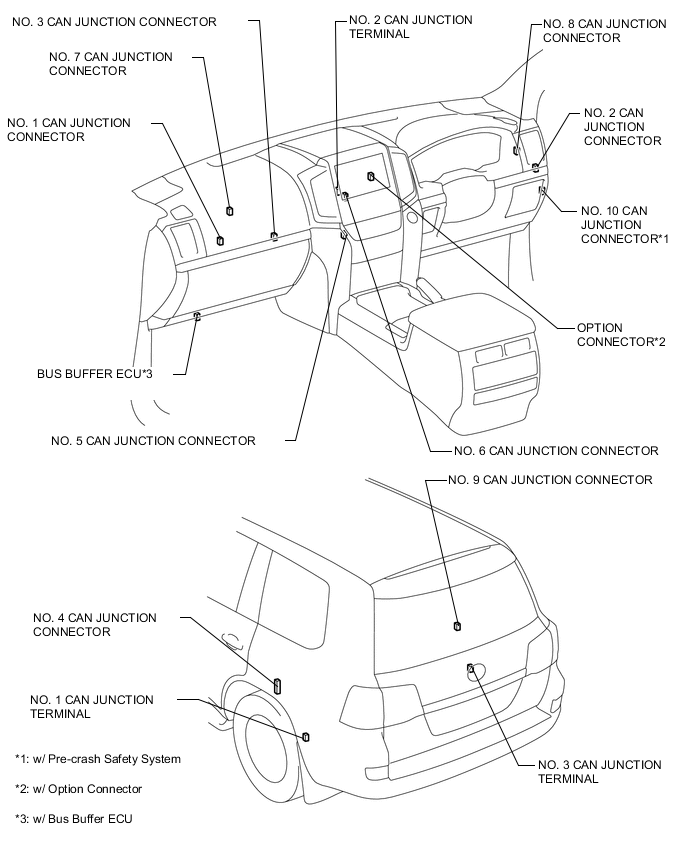

A01X2DKE03
