FUEL PUMP REASSEMBLY

CAUTION / NOTICE / HINT

Note:

Do not disconnect the hoses indicated in the illustration.

PROCEDURE

1. Click here

   INSTALL NO. 1 FUEL SUCTION SUPPORT




   1. Attach the 2 claws to the claw holes to install the fuel suction support.

2. Click here

   INSTALL FUEL MAIN VALVE ASSEMBLY



   1.

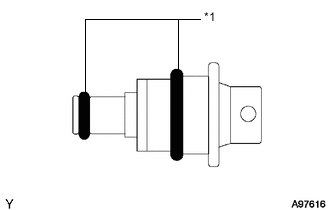

      Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel main valve.

      Table 1. Text in Illustration

      *1	New O-Ring

   2. Install the fuel main valve to the fuel filter case.

      Note:

      Make sure the O-rings are not cut or pinched during the installation.

3. Click here

   INSTALL FUEL PUMP




   1. Connect the fuel pump wire harness connector to the fuel pump.

   2.

      Apply a light coat of gasoline to a new O-ring. Then install the O-ring and spacer to the fuel pump.

      Table 2. Text in Illustration

      *1	O-Ring
      *2	Spacer

   3. Attach the 5 claws to the claw holes and install the fuel pump to the fuel filter case.

4. Click here

   INSTALL NO. 1 FUEL SUB-TANK

   Note:

   Make sure that the fuel tube passes into the section marked by the circle.

   Table 3. Text in Illustration

   *1

   Fuel Tube




   1. Attach the 3 claws to the claw holes and install the fuel sub-tank.

   2.

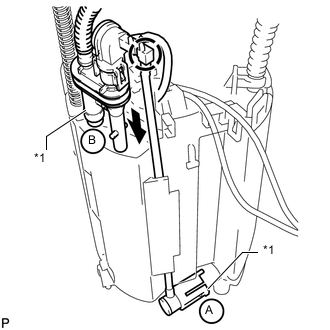

      Connect the jet pump (labeled B) to the sub-tank.

      Table 4. Text in Illustration

      *1

      Jet Pump




      1. Attach the claw on the end of the tube to the claw hole.

   3. Connect the jet pump (labeled A) to the sub-tank.

   4. Connect the fuel pump connector.

5. Click here

   INSTALL FUEL SENDER GAUGE ASSEMBLY

   Click here
