FRONT EVAPORATOR TEMPERATURE SENSOR INSTALLATION

PROCEDURE


  1. INSTALL NO. 1 COOLER THERMISTOR

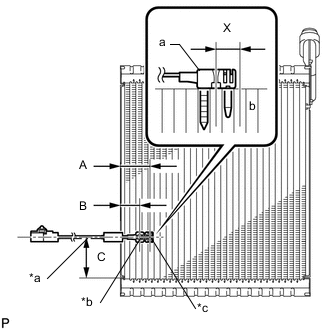

    1. B001M76E01
      Text in Illustration
      *a From Tank
      *b Fixed Part
      *c Sensor Part

      Install the No. 1 cooler thermistor as shown in the illustration.

      Part Length
      A 34.3 mm 1.35 in.
      B 20.9 mm 0.822 in.
      C 50 mm 1.97 in.

      Note


      • Be sure to insert the thermistor only once because reinserting it into the same position will not allow it to be firmly secured.

      • When reusing the evaporator, insert the thermistor one row next to the one that has been used previously (X in the illustration).

      • After inserting the thermistor, do not apply excessive force to the wire.

      • Directly insert the thermistor until the edge of plastic case "a" comes into contact with evaporator "b".
