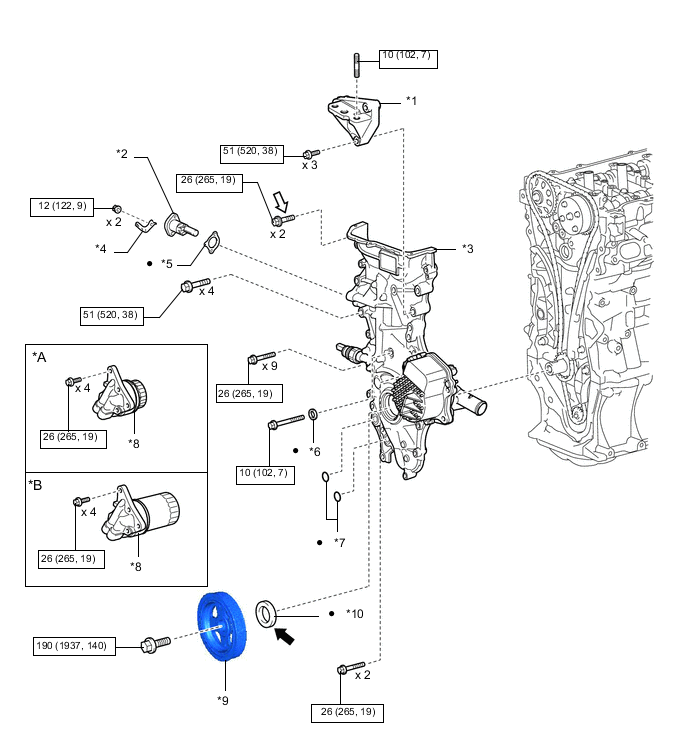

OIL PUMP COMPONENTS
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
| *A | for Oil Filter Element Kit Type | *B | for Oil Filter Sub-assembly Type |
| *1 | ENGINE MOUNTING BRACKET RH | *2 | NO. 1 CHAIN TENSIONER ASSEMBLY |
| *3 | TIMING CHAIN COVER SUB-ASSEMBLY | *4 | BRACKET |
| *5 | GASKET | *6 | SEAL WASHER |
| *7 | O-RING | *8 | OIL FILTER BRACKET |
| *9 | CRANKSHAFT PULLEY | *10 | TIMING CHAIN COVER OIL SEAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease |  |
Adhesive 1324 |
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
