DIGITAL AUDIO BROADCASTING ANTENNA REMOVAL

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY

   Click here

2. REMOVE DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY

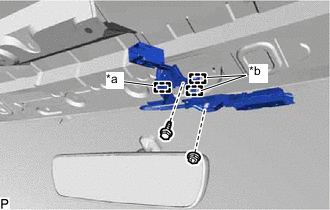

   1.

      *a	Clamp
      *b	Guide

      Remove the bolt and nut.

   2. Disengage the clamp and 2 guides to remove the digital audio broadcasting antenna assembly.
