DIGITAL AUDIO BROADCASTING ANTENNA REMOVAL

PROCEDURE


  1. REMOVE ROOF HEADLINING ASSEMBLY

    Click here

  2. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

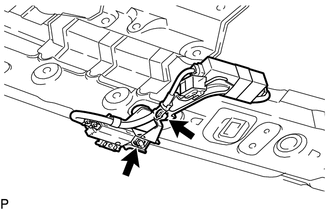

    1. A004X92

      Remove the bolt and nut.

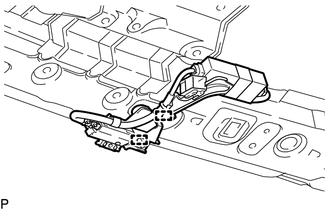

    2. A004XGB

      Disengage the 2 guides and remove the No. 1 amplifier antenna assembly.
