HEATED STEERING WHEEL CONTROLLER COMPONENTS
ILLUSTRATION
| *1 | STEERING WHEEL ASSEMBLY | *2 | STEERING WHEEL ASSEMBLY SET NUT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

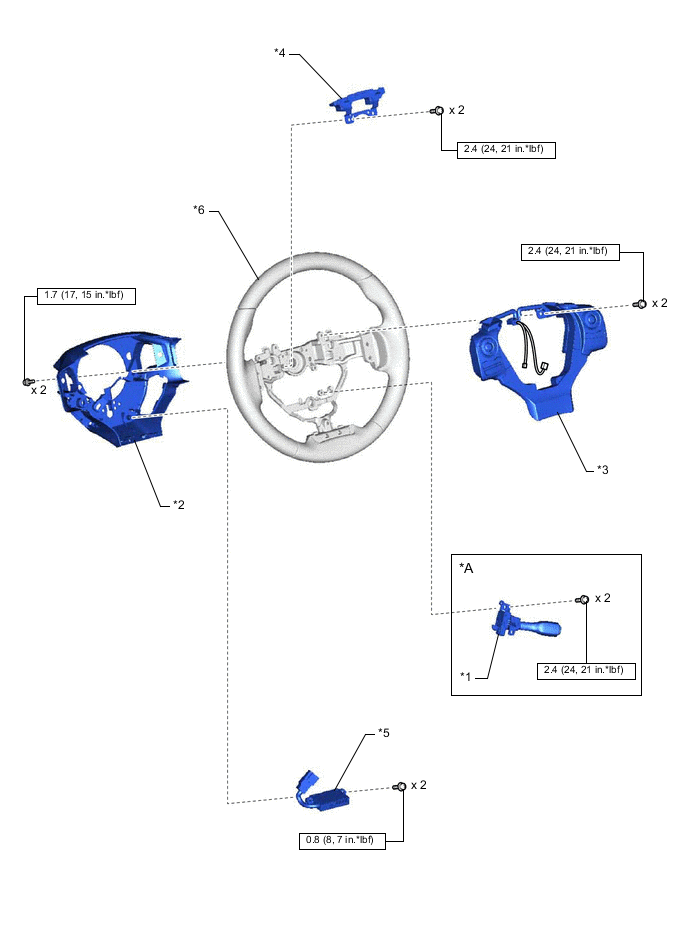

ILLUSTRATION
| *A | w/ Cruise Control System | - | - |
| *1 | CRUISE CONTROL SWITCH | *2 | LOWER STEERING WHEEL BOSS COVER |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STEERING SHAKE DAMPER |
| *5 | STEERING WHEEL HEATER CONTROL ASSEMBLY | *6 | STEERING WHEEL SUB-ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
