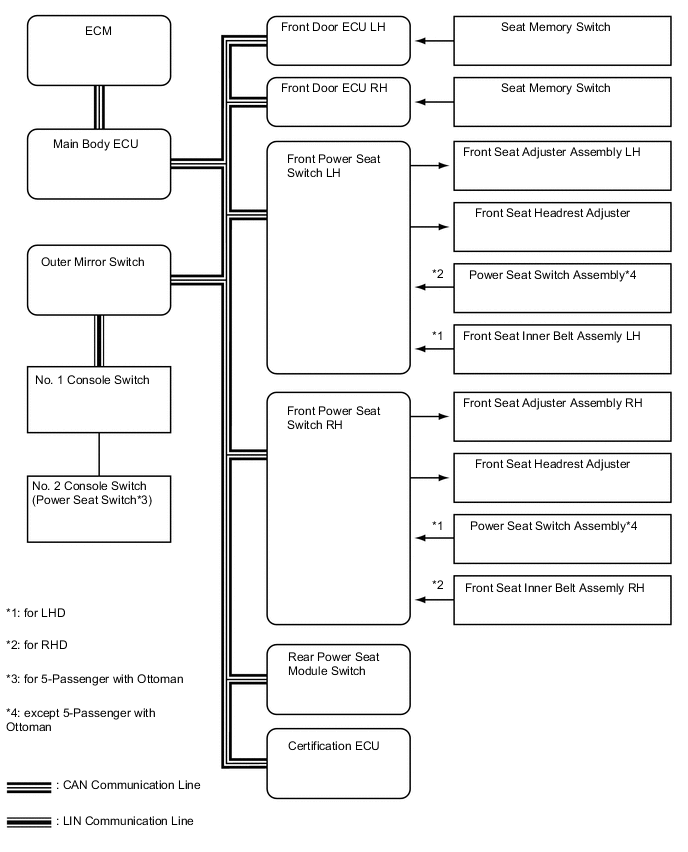

FRONT POWER SEAT CONTROL SYSTEM SYSTEM DIAGRAM

A0019JXE01
Communication table
Sender Receiver Signal Line
ECM Front Power Seat Switch LH*1, RH*2 Shift position signal CAN
ECM Front Power Seat Switch RH*1, LH*2 Shift position signal CAN
Front Door ECU (for driver side) Front Power Seat Switch LH*1, RH*2

  • Seat memory switch M1 signal

  • Seat memory switch M2 signal

  • Seat memory switch M3 signal

 CAN
Front Door ECU (for passenger side) Front Power Seat Switch RH*1, LH*2

  • Seat memory switch M1 signal

  • Seat memory switch M2 signal

  • Seat memory switch M3 signal

 CAN
Main Body ECU Front Power Seat Switch LH*1, RH*2 Driver door courtesy light switch signal CAN
Main Body ECU Front Power Seat Switch RH*1, LH*2 Passenger door courtesy light switch signal CAN
Certification ECU Front Power Seat Switch LH*1, RH*2

  • Door lock/unlock signal

  • Key ID signal

 CAN
Rear Power Seat Module Switch Front Power Seat Switch RH*1, LH*2 Power seat switch signal CAN
Front Power Seat Switch LH*1, RH*2 Front Door ECU (for driver side)

  • M1 switch memory command signal

  • M2 switch memory command signal

  • M3 switch memory command signal

 CAN
Front Power Seat Switch RH*1, LH*2 Front Door ECU (for passenger side)

  • M1 switch memory command signal

  • M2 switch memory command signal

  • M3 switch memory command signal

 CAN
No. 1 Console Switch Outer Mirror Switch Power seat switch signal*3 LIN
Outer Mirror Switch Front Power Seat Switch RH*1, LH*2 Power seat switch signal*3 CAN

Tech Tips


  • *1: for LHD

  • *2: for RHD

  • *3: for 5-Passenger with Ottoman
